Single Phase Solar Inverter: Global B2B Procurement Architecture, Grid Compliance & High-Gain Selection

Modern single phase solar inverters from RJV support a DC/AC ratio of up to 150% to 160% (1.5:1 to 1.6:1). For example, pairing 9kWp of N-Type TOPCon panels with a 6kW single phase inverter allows the system to maximize energy generation during morning and late afternoon hours, providing a flatter, broader production curve. To ensure warranty protection, the total open circuit voltage ($V_{oc}$) of the array must never exceed the maximum DC input voltage of the inverter (typically 550V to 600V DC) under the coldest anticipated ambient site temperature, calculated using the module temperature coefficient ($\beta V_{oc}$).

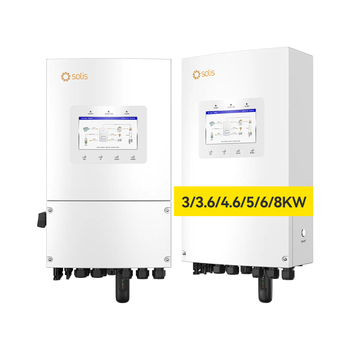

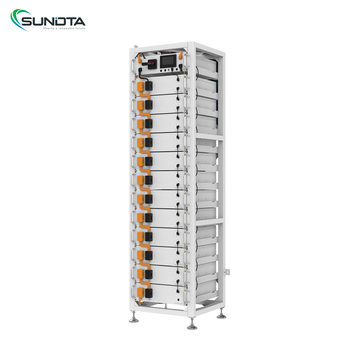

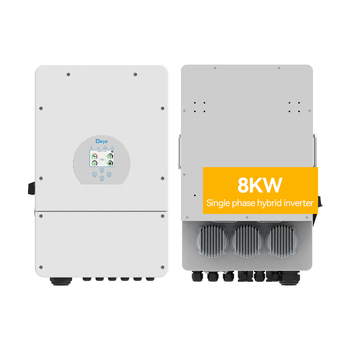

Low-voltage (48V/51.2V) hybrid inverters (such as the Deye 5kW–16kW and Solis S6) utilize parallel battery strings. They offer low initial capital expenditure, safe touch voltages, and easy battery expansion for homeowners. However, delivering 6kW–10kW of power demands high currents (120A–200A), necessitating thick 35mm²–50mm² copper cabling. High-voltage hybrid systems run battery voltages between 150V and 450V DC. By increasing voltage, current drops to 20A–40A, eliminating internal resistive losses by up to 80% and delivering faster charging response times and superior full-cycle round-trip efficiency.

Yes. Both our high-frequency transformerless hybrid units (Deye / Solis) and low-frequency toroidal transformer inverters are engineered with robust inrush surge tolerances. Transformerless units support 200% continuous surge capacity for 10 seconds, which easily handles variable-speed heat pump compressors and refrigerators. For severe inductive environments such as large deep-well borehole pumps, agricultural machinery, or industrial workshop motors, we recommend RJV low-frequency single phase inverters, which offer 300% surge capacity for 20 seconds through heavy copper toroidal magnetic storage.

Yes. In jurisdictions where grid feed-in is either prohibited, untariffed, or subject to transformer saturation penalties, our single phase inverters utilize supplied split-core Current Transformers (CT) or smart energy meters (e.g., Eastron, Chint). The inverter DSP samples real-time home consumption at the main breaker box and modulates MPPT output in under 100 milliseconds to match instantaneous household loads, ensuring zero reverse power feeds back into the utility grid.

Our Deye single phase series includes a dedicated AUX/Generator input port featuring programmable dry contacts. When the LiFePO4 battery drops to a pre-set state-of-charge (e.g., 20%), the inverter automatically closes the dry contact to start an external generator. Once running, the inverter manages generator AC voltage and frequency fluctuations, using generator power to supply home loads while simultaneously recharging the battery bank at a controlled current limit.

Standard models in stock have an MOQ of only 1 piece, allowing installers and engineering firms to conduct sample testing and bench validation. Palletized orders (typically 12 to 24 units per pallet) and full container loads (20GP / 40HQ) are dispatched within 7 to 15 business days. European buyers can take advantage of rapid dispatch from our bonded European warehouse facilities, slashing transit times to 3–5 working days within continental Europe.

All single phase solar inverters come with a standard 5-year factory warranty, extendable to 10 or 15 years upon request. In the event of field anomalies, our remote diagnostic team accesses inverter operating datalogs via Wi-Fi logger dongles to identify hardware faults within 24 hours. For validated hardware faults, warranty replacement boards or full replacement units are dispatched promptly, supported by local service centers and engineering support.
