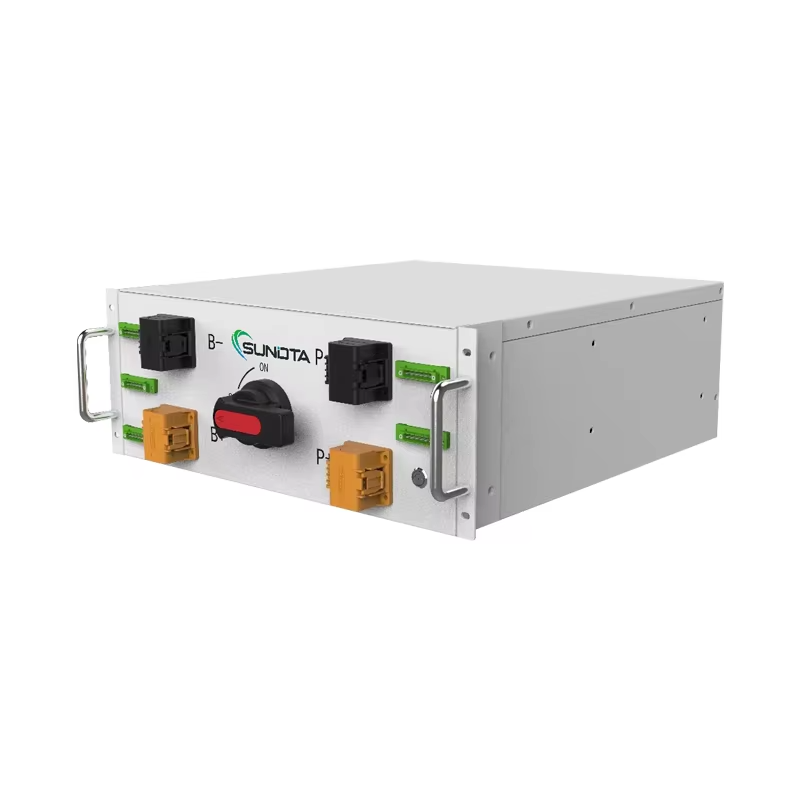

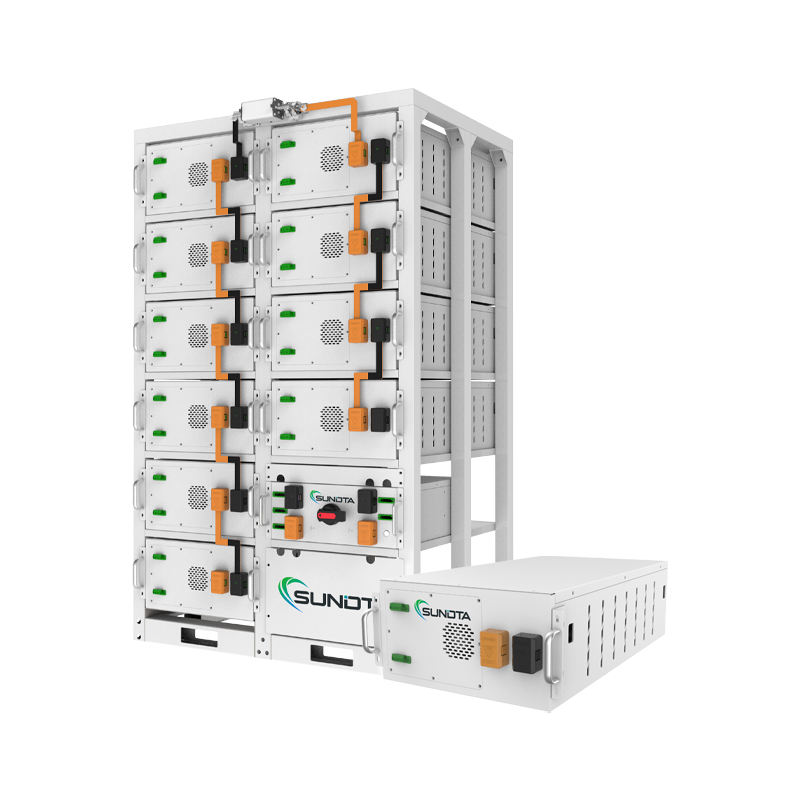

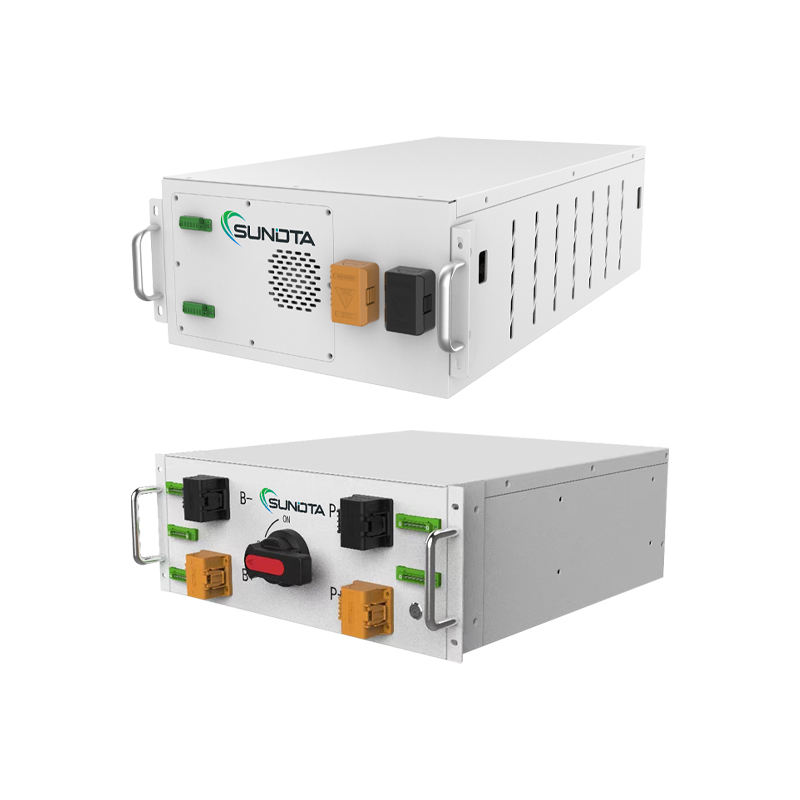

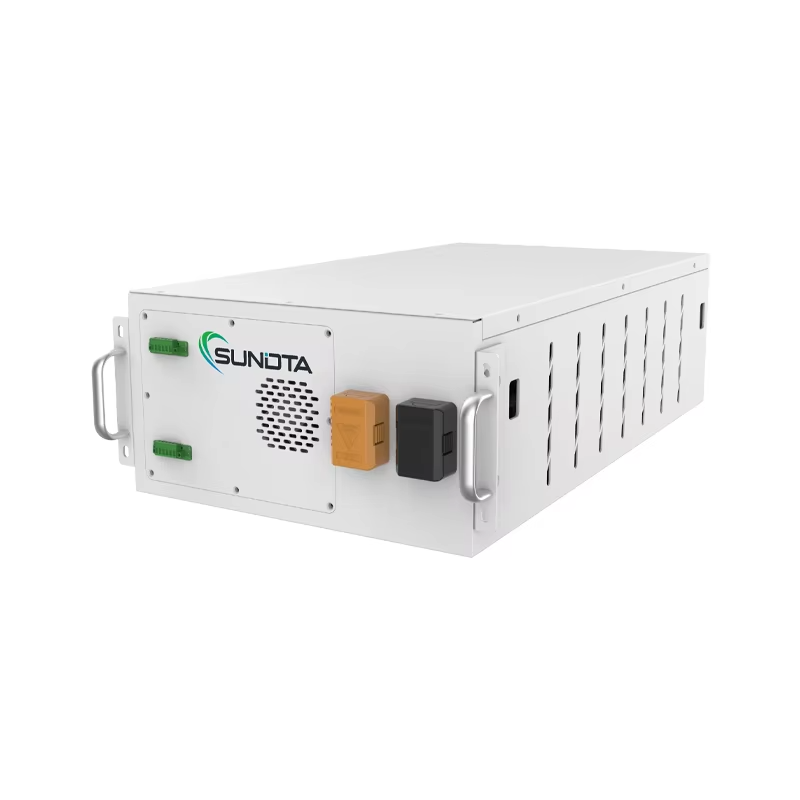

High Quality LiFePO4 Lithium Battery Stackable 51.2V 14.336kWh Wall-Mounted 10-Year Warranty Home Energy Storage Solar Battery
Product Description
Product Parameters
| Item | Specification |
|---|---|
| Nominal Voltage (V) | 51.2V |
| Minimal Working Voltage (V) | 43.2V |
| Maximum Working Voltage (V) | 58.4V |
| Configuration Mode | 1P16S |
| Rated Capacity (Kwh) | 14.336kwh |
| Weight (kg) | 110±2 (TBD) |
| Number of Temperature Collection Points (PCS/BOX) | 8 (TBD) |
| Energy Density (wh/kg) | ≥135 (TBD) |
| Rated Capacity (Ah) | 280AH |
| Cycle Life | ≥6000 |
| Maximum Pulse Charging Current (30s) | 1C |
| Maximum Continuous Discharge Current (A) | 140A / 0.5C |
| Self-discharge Rate | ≤3% / Month |
| Storage Temperature (°C) | 0-45°C, RH≤65% |
| Insulation Grade | ≥1000 |
| Battery Case IP Grade | IP20 |
| Cooling Method | Air-cooled |
| Charge at the Time of Shipment (SOC) | 30%±5% |
| Product Size (mm) | 435x234x800mm |
| Certificate | CE, UN38.3, MSDS, IEC62619 |
If you want to know more details, welcome to contact us at any time!

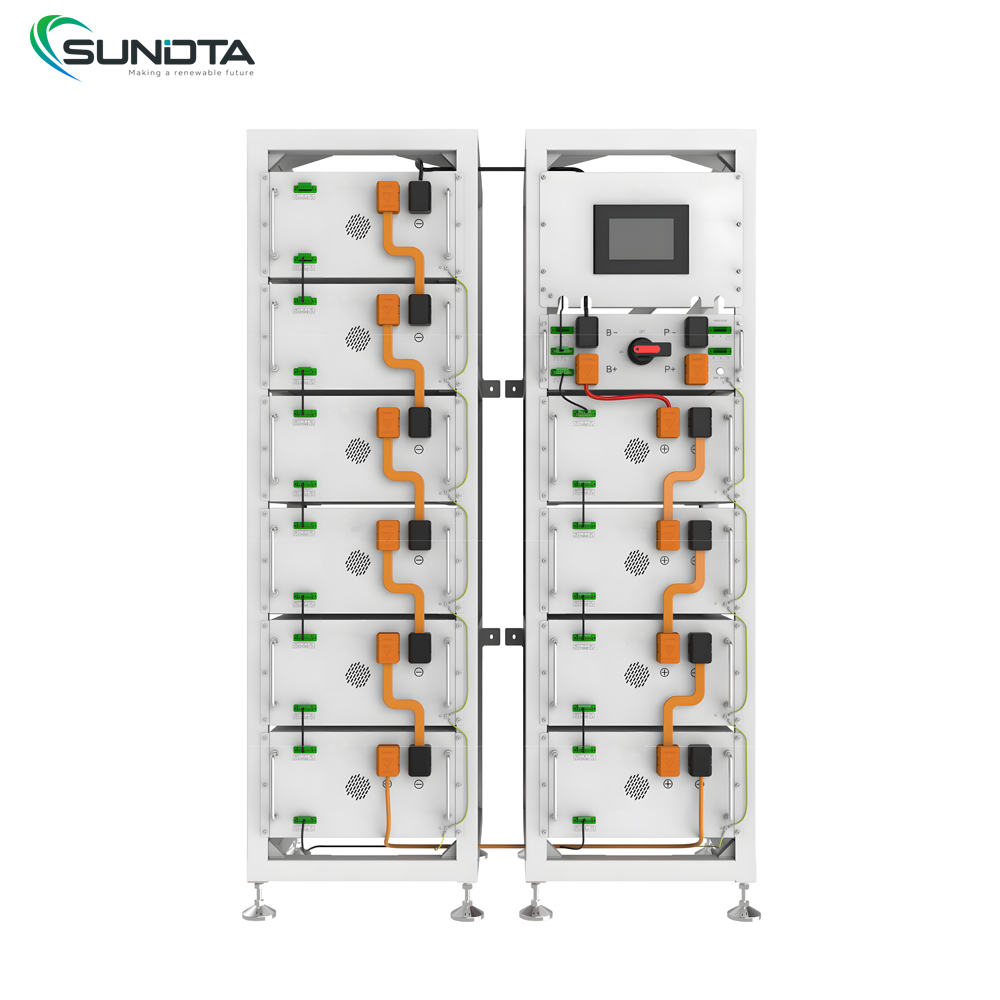

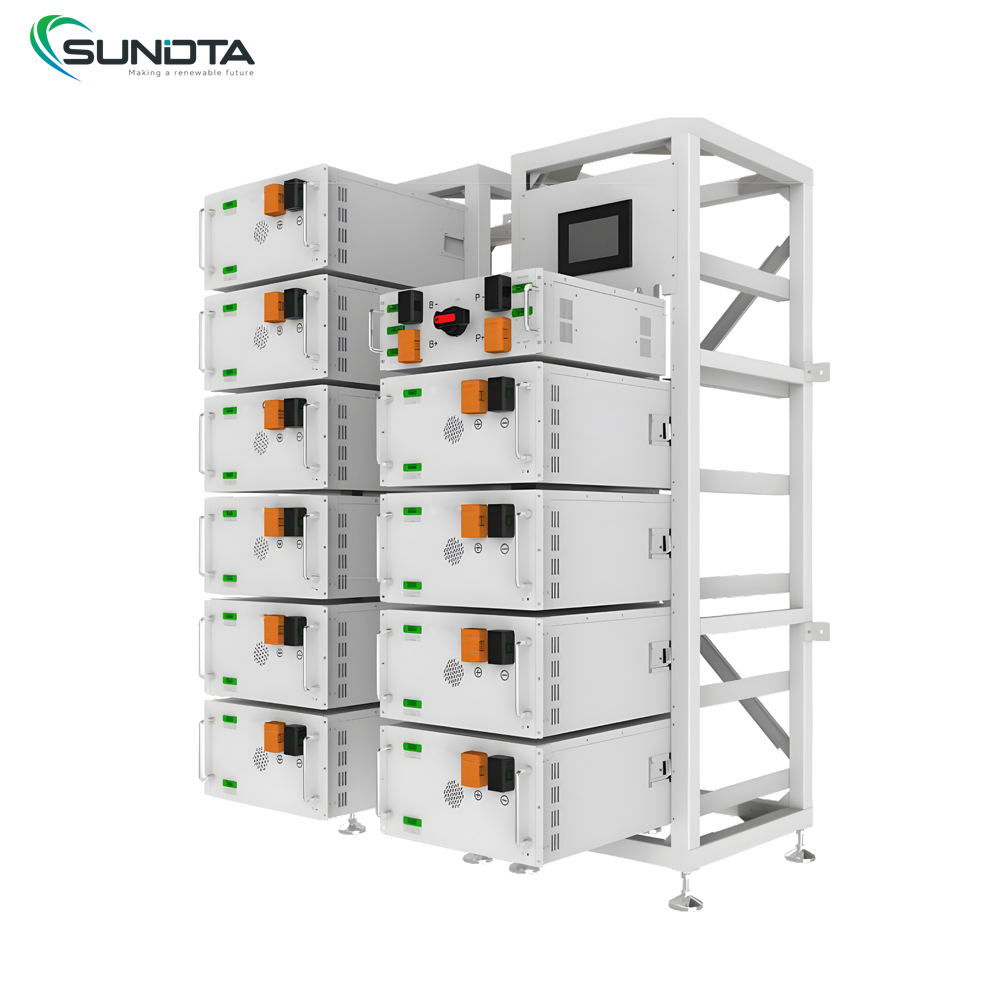

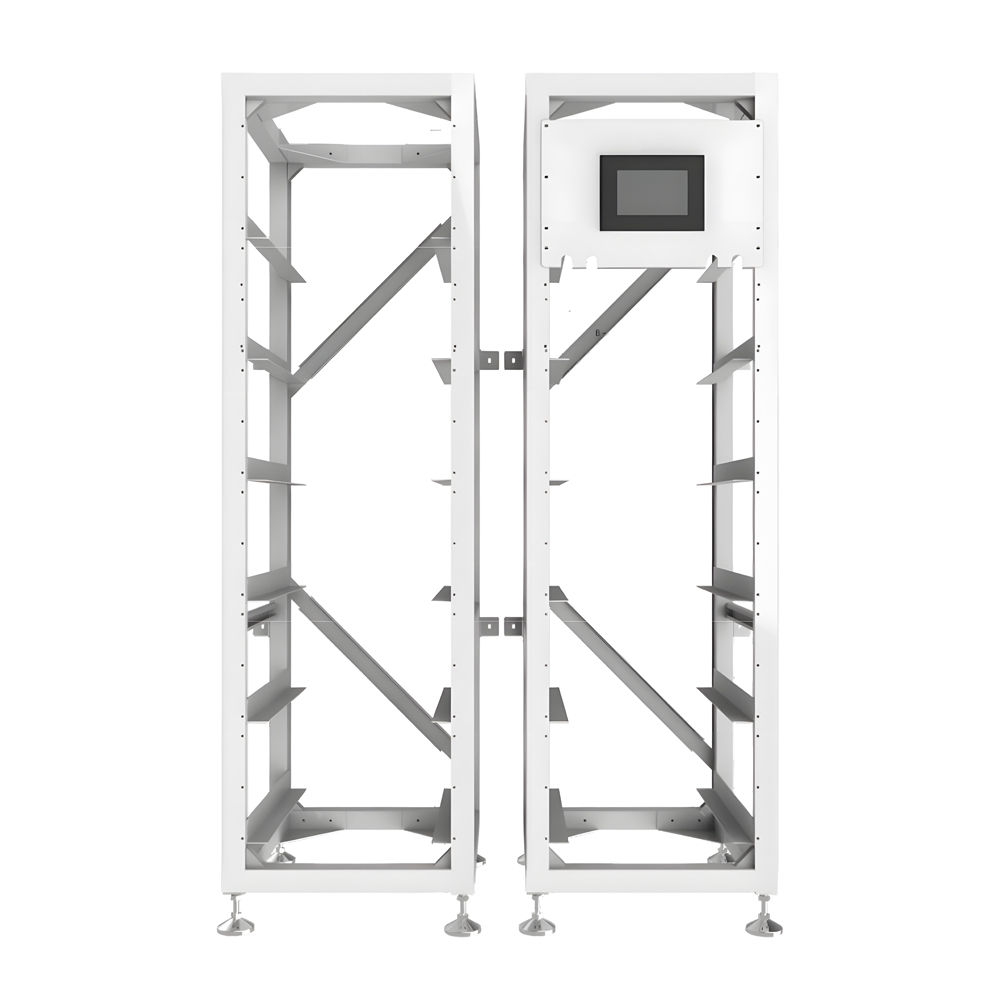

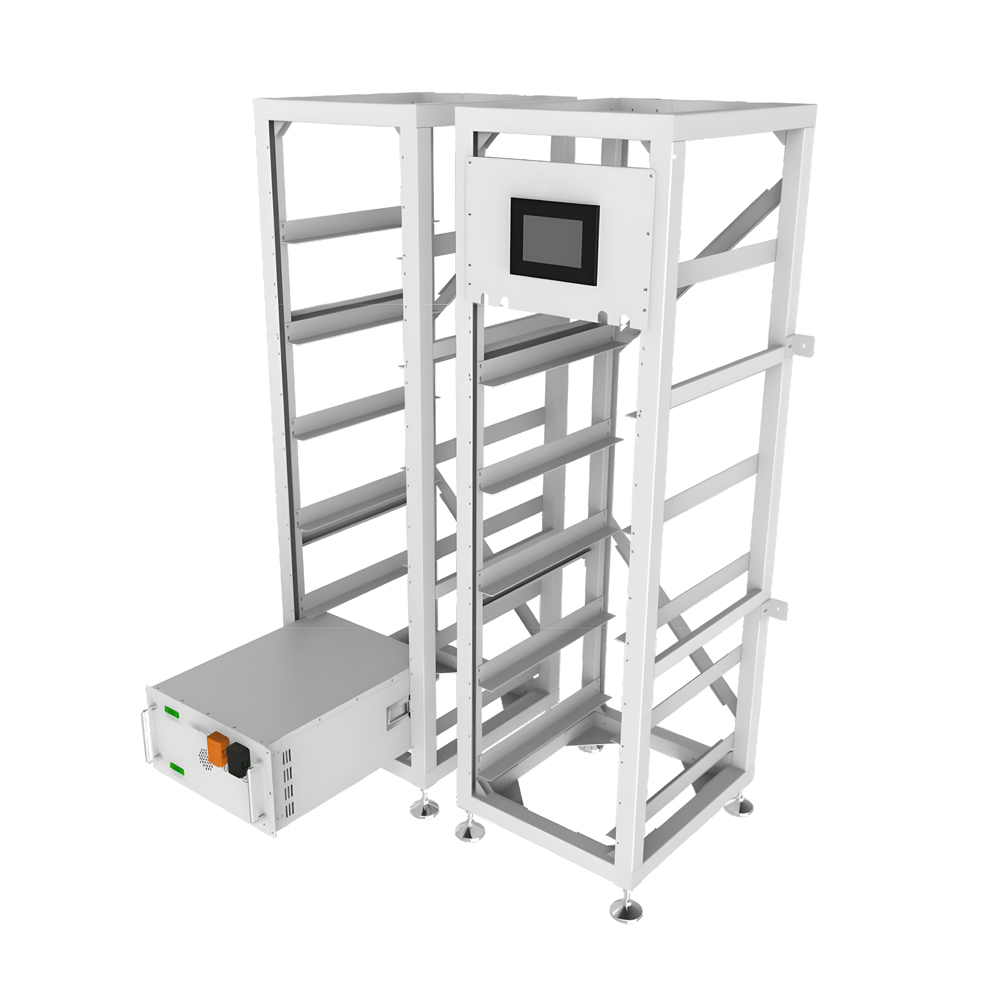

Details Images
Product Packaging
Certifications
Why Choose Us
Hot Selling Products
We are committed to providing customers with quality products. Our goal is to meet the needs of our customers and provide high-quality, reliable products to ensure customer satisfaction and trust.
Selected Raw Material
We work with quality suppliers to ensure the quality and reliability of raw materials. We only select strictly screened suppliers to ensure the quality of our products.
Strong Technical Team
We have a professional R&D team dedicated to product innovation and technological improvement. They continuously study market needs, maintain close communication with customers, and continuously improve and optimize products based on customer feedback.
Quality Control System
In addition, we pay attention to quality management. We have established a strict quality control system to monitor and test every production link to ensure that our products meet international standards and customer requirements.
7/24 Online Support
We attach importance to after-sales service. We provide timely and professional after-sales support to solve problems and confusions in product use for customers. We are always ready to answer customer inquiries and provide technical guidance and training support.
Successful Global Projects
Service countries and regions have exceeded 100 since establishment, supporting reliable clean energy storage worldwide.
Frequently Asked Questions
Q
What is the nominal voltage and total storage capacity of this battery?
This system operates at a nominal voltage of 51.2V with a rated capacity of 280Ah, delivering a total rated energy capacity of 14.336 kWh.
Q
What is the expected cycle lifespan of the battery?
The battery is engineered for high durability, offering an extensive cycle life of ≥6000 cycles under standard operating conditions.
Q
Which international safety standards and certifications does the system meet?
The battery unit is certified to leading safety and transportation standards including CE, UN38.3, MSDS, and IEC62619.
Q
What are the recommended temperature and environmental conditions for storage?
It is recommended to store the battery at an ambient temperature between 0°C and 45°C with relative humidity ≤65%. Units are shipped with a state of charge (SOC) of 30% ± 5%.
Q
What is the cell configuration and cooling design of this model?
This battery unit utilizes a 1P16S configuration and is built with an efficient air-cooled thermal dissipation design within an IP20 protective enclosure.
Q
What are the maximum charging and continuous discharging currents?
The maximum continuous discharge current is 140A (0.5C), and it supports a peak pulse charging current of up to 1C (for 30 seconds).
