585W-595W Premium N-Type Bifacial PV Module | Monocrystalline Solar Panel for High-Yield Energy Generation
Product Description
Product Parameters
| Electrical Data (STC) | ||||
|---|---|---|---|---|
| Maximum Power (Pmax) | 580W | 585W | 590W | 595W |
| Maximum Power Voltage (Vmp) | 42.37V | 42.52V | 42.67V | 42.82V |
| Maximum Power Current (Imp) | 13.69A | 13.76A | 13.83A | 13.90A |
| Open-circuit Voltage (Voc) | 51.02V | 51.16V | 51.30V | 51.44V |
| Short-circuit Current (Isc) | 14.47A | 14.55A | 14.63A | 14.71A |
| Module Efficiency (%) | 22.45% | 22.65% | 22.84% | 23.03% |
| Electrical Data (NOCT) | ||||
|---|---|---|---|---|
| Maximum Power (Pmax) | 436W | 440W | 444W | 448W |
| Maximum Power Voltage (Vmp) | 39.69V | 39.81V | 39.93V | 40.05V |
| Maximum Power Current (Imp) | 10.99A | 11.05A | 11.11A | 11.17A |
| Open-circuit Voltage (Voc) | 48.46V | 48.60V | 48.74V | 48.88V |
| Short-circuit Current (Isc) | 11.68A | 11.75A | 11.82A | 11.89A |
| Module Efficiency (%) | 22.45% | 22.65% | 22.84% | 23.03% |
| Cell Orientation | 144 (6x24) |
|---|---|
| Dimension | 2278x1134x35mm |
| Weight | 28kg |
| Glass | 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68, three diodes |
| Output Cable | TUV 1x4.0mm², (+):400mm, (-):200mm or Customized Length |
| Packaging | 31pcs/pallet, 620pcs/40'HQ |
If you want to know more details, welcome to contact us at any time!

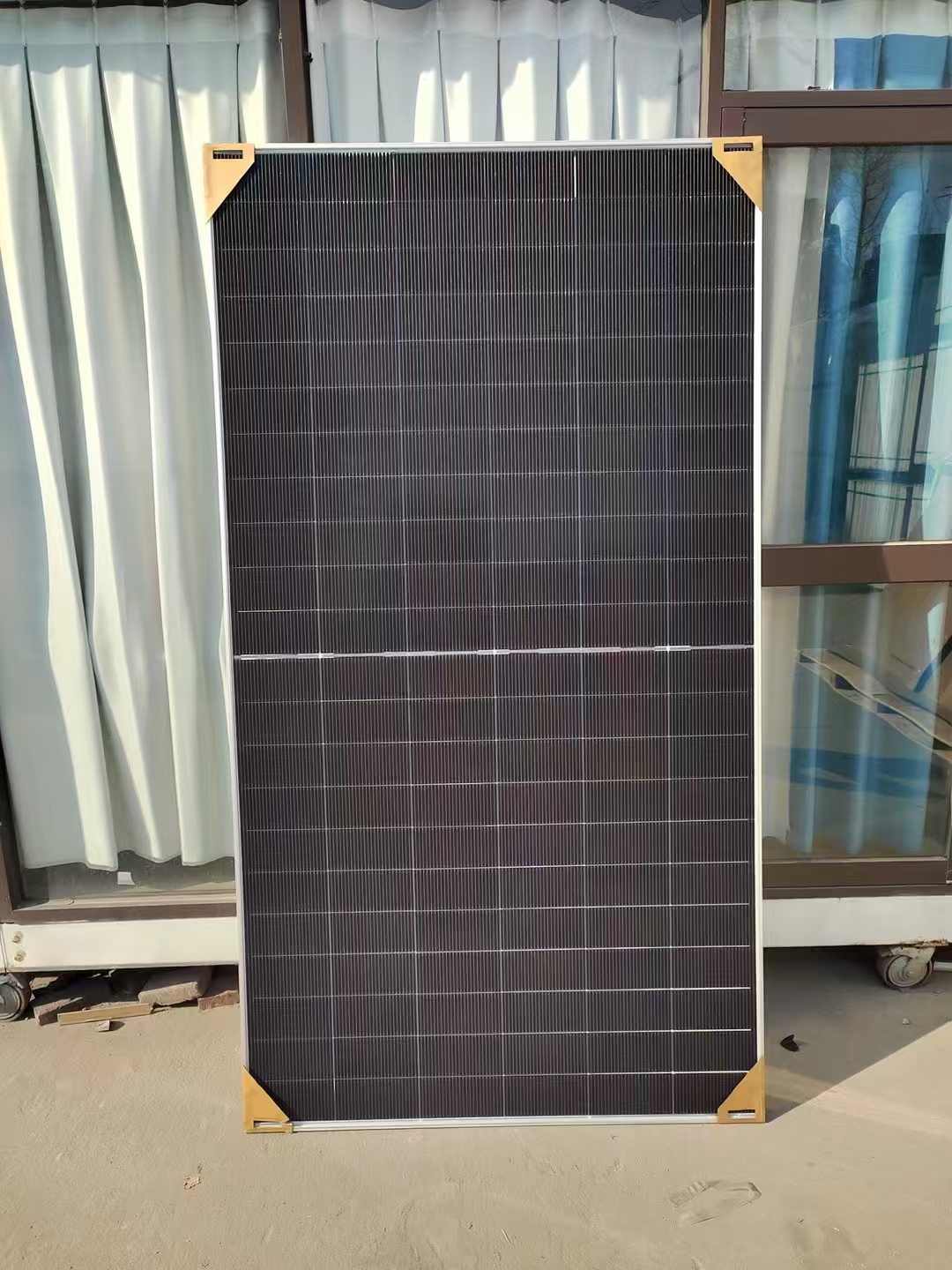

Details Images
Product Packaging
Certifications

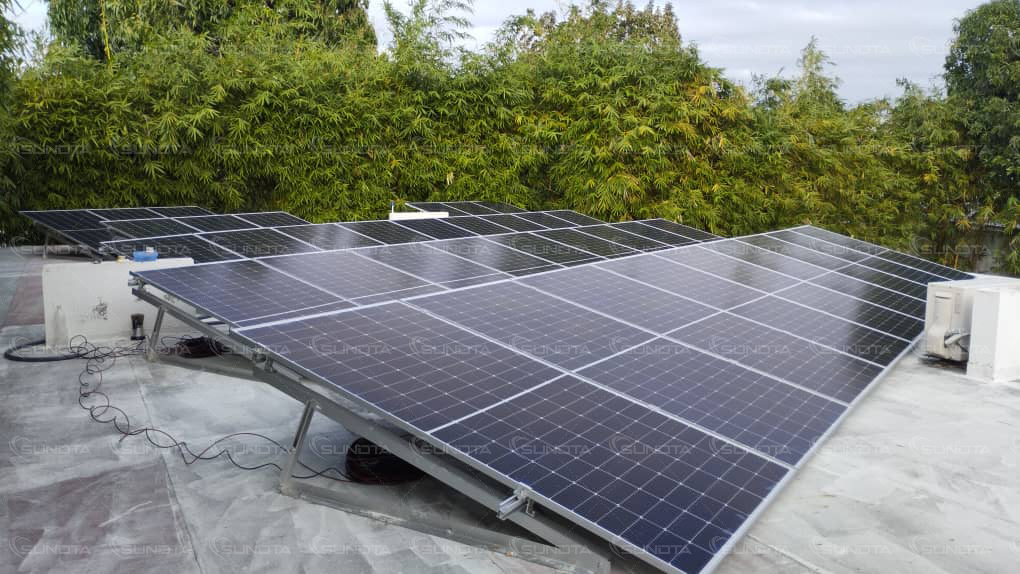

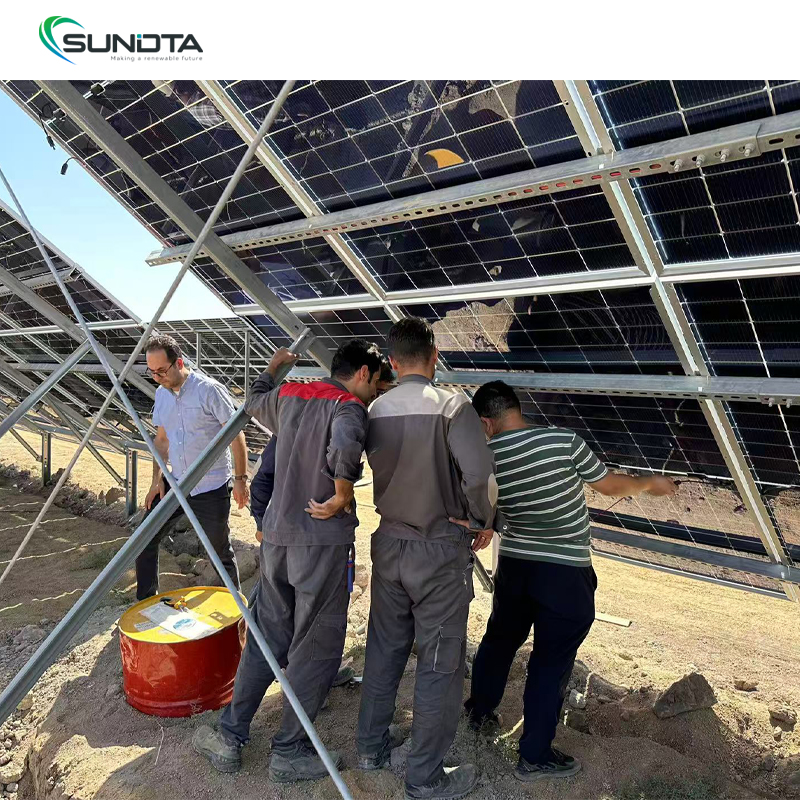

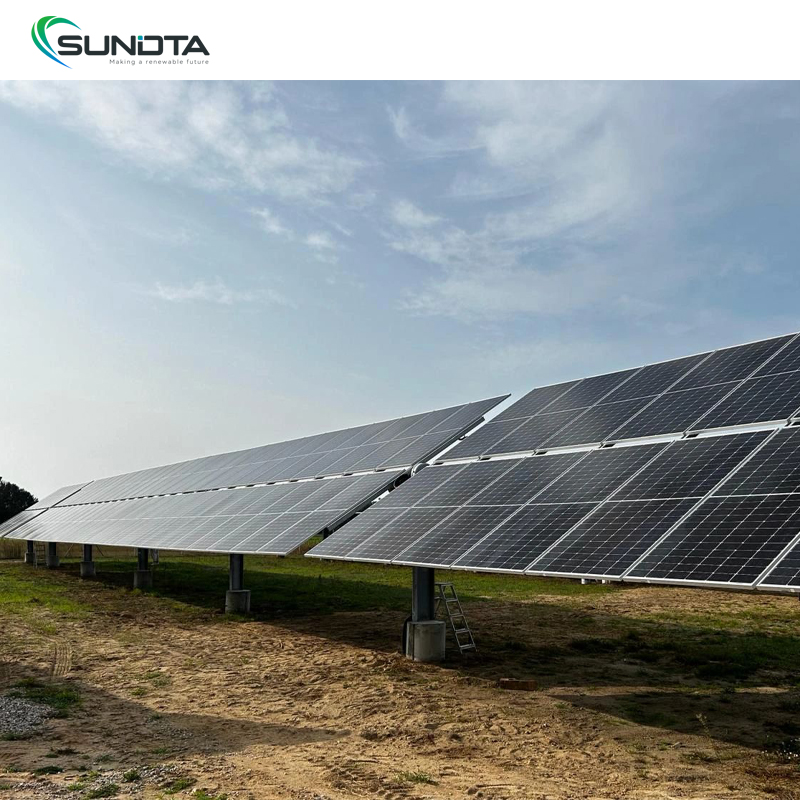

Our Projects
Regarding Our Company and Our Team
Frequently Asked Questions
What power options are available for this solar module series?
This series offers multiple power ratings including 580W, 585W, 590W, and 595W with maximum module efficiency reaching up to 23.03% under standard testing conditions.
What are the physical dimensions and weight of the module?
Each panel measures 2278 x 1134 x 35 mm and weighs 28 kg, built with a 3.2mm low iron tempered anti-reflective coating glass and an anodized aluminum alloy frame.
What is the protection rating and wiring specification of the product?
The module comes equipped with an IP68-rated junction box with three bypass diodes and TUV 1x4.0mm² cables (+:400mm, -:200mm) or customized lengths.
How are these solar modules packaged for global shipping?
The panels are packaged at 31 pieces per pallet, allowing for a total of 620 pieces inside a standard 40'HQ shipping container to guarantee safe transportation.
Are these solar modules certified for international compliance?
Yes, our modules have passed comprehensive international testing and certifications to guarantee electrical efficiency, reliability, and mechanical strength in various field conditions.
