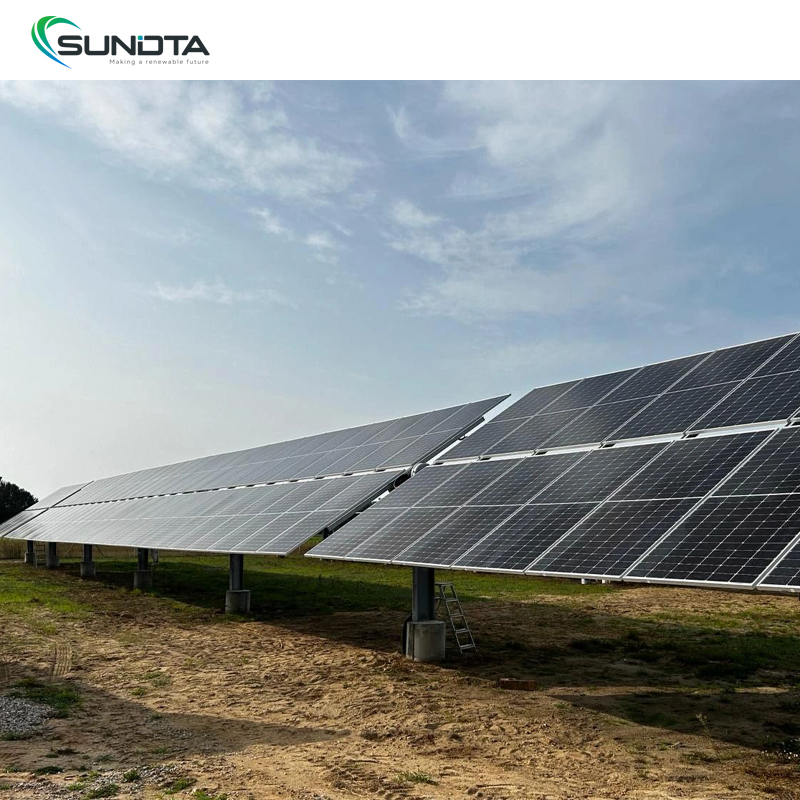

Premium 585W-595W N Type Bifacial PV Module High Yield Monocrystalline Solar Panels 590W Tier 1 Solar Power System
Product Description
⚡
Product Parameters
| Electrical Data (STC) | ||||
|---|---|---|---|---|
| Maximum Power (Pmax) | 580W | 585W | 590W | 595W |
| Maximum Power Voltage (Vmp) | 42.37V | 42.52V | 42.67V | 42.82V |
| Maximum Power Current (Imp) | 13.69A | 13.76A | 13.83A | 13.90A |
| Open-circuit Voltage (Voc) | 51.02V | 51.16V | 51.30V | 51.44V |
| Short-circuit Current (Isc) | 14.47A | 14.55A | 14.63A | 14.71A |
| Module Efficiency (%) | 22.45% | 22.65% | 22.84% | 23.03% |
| Electrical Data (NOCT) | ||||
|---|---|---|---|---|
| Maximum Power (Pmax) | 436W | 440W | 444W | 448W |
| Maximum Power Voltage (Vmp) | 39.69V | 39.81V | 39.93V | 40.05V |
| Maximum Power Current (Imp) | 10.99A | 11.05A | 11.11A | 11.17A |
| Open-circuit Voltage (Voc) | 48.46V | 48.60V | 48.74V | 48.88V |
| Short-circuit Current (Isc) | 11.68A | 11.75A | 11.82A | 11.89A |
| Module Efficiency (%) | 22.45% | 22.65% | 22.84% | 23.03% |
| Cell Orientation | 144 (6x24) |
| Dimension | 2278x1134x35mm |
| Weight | 28kg |
| Glass | 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68, three diodes |
| Output Cable | TUV 1x4.0mm², (+):400mm, (-):200mm or Customized Length |
| Packaging | 31pcs/pallet, 620pcs/40'HQ |
If you want to know more details, welcome to contact us at any time!
🔍

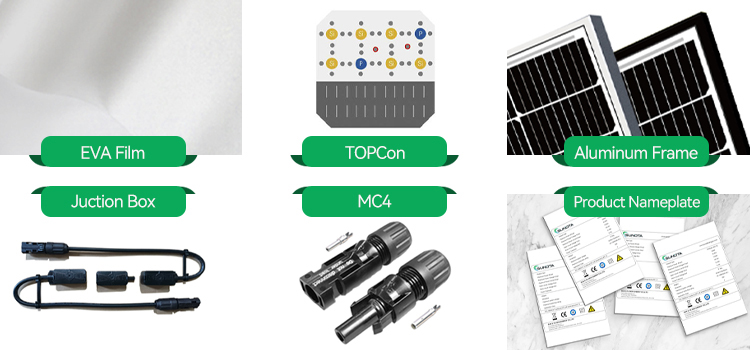

Details Images
📦

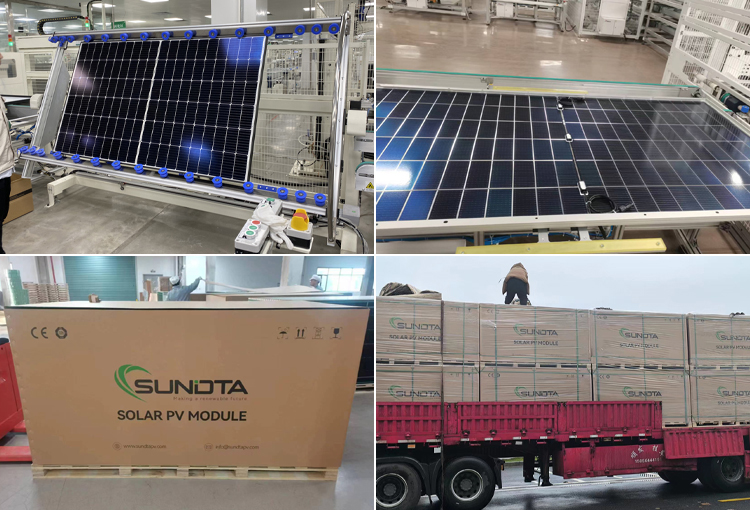

Product Packaging
📜
Certifications
🏗️

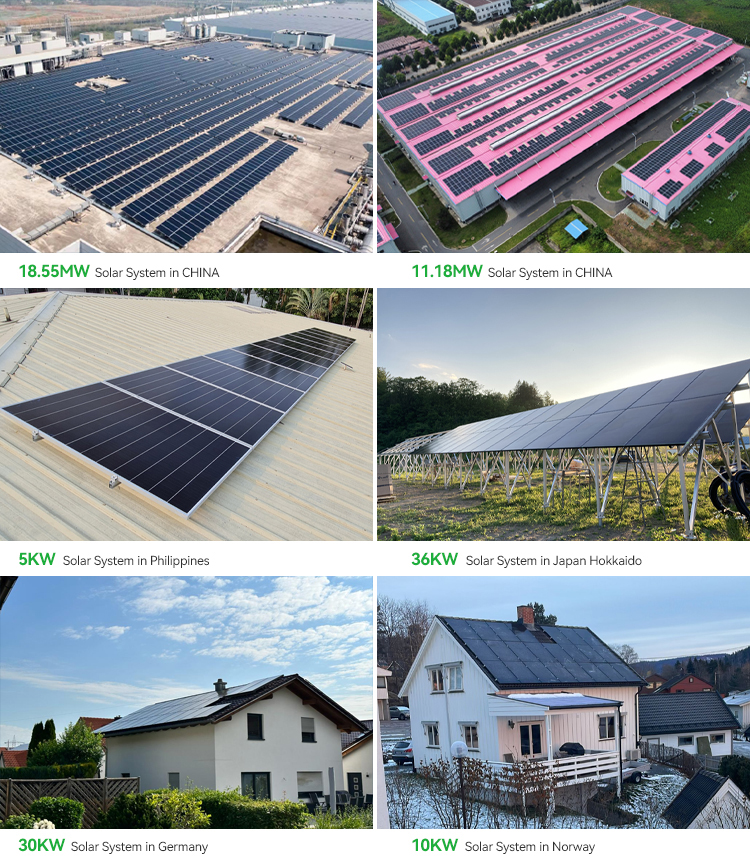

Our Projects
👥
Regarding our company and our team
❓
Frequently Asked Questions (FAQ)
Q1: What power ratings are available for this series of solar modules?
A: The solar modules are available in power outputs of 580W, 585W, 590W, and 595W with high module efficiency reaching up to 23.03%.
Q2: What are the physical dimensions and weight of the solar panels?
A: Each panel measures 2278 x 1134 x 35 mm and weighs approximately 28 kg, built with a 144 (6x24) cell layout.
Q3: How are the solar panels packaged for shipping?
A: Modules are packed standardly at 31 pieces per pallet, allowing up to 620 pieces per 40'HQ shipping container.
Q4: What protective features do these solar panels include?
A: They feature 3.2mm anti-reflective low-iron tempered glass, an anodized aluminum alloy frame, and an IP68 junction box equipped with three bypass diodes.
Q5: Can cable lengths be customized according to system needs?
A: Yes, standard cables are TUV 1x4.0mm² with (+) 400mm and (-) 200mm lengths, and customized cable lengths can be accommodated upon request.
Q6: How can I request further details or technical specifications?
A: You are welcome to contact our team at any time for comprehensive data sheets, quotation inquiries, and project support.
