Tier 1 Solar Panel Sodenergy 700W 705W 710W 715W 720W 725W 730W N Type Solar Panel
Product Description

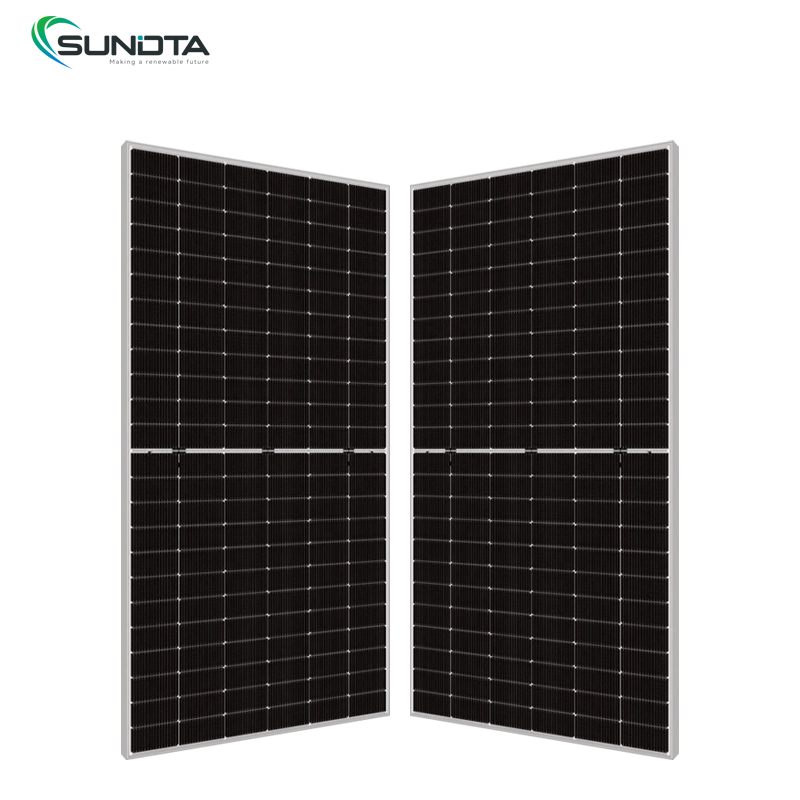

Details Images
Product Parameters
| Cell Orientation | 144 (6x24) |
| Dimension | 2278x1134x35mm |
| Weight | 28kg |
| Glass | 3.2mm, Anti-Reflection Coating, High Transmission, Low Iron, Tempered Glass |
| Frame | Anodized aluminum alloy frame |
| Junction Box | IP68, three diodes |
| Output Cable | TUV 1x4.0mm², (+):400mm, (-):200mm or Customized Length |
| Packaging | 31pcs/pallet, 620pcs/40'HQ |
| Electrical Data (STC) | ||||
|---|---|---|---|---|
| Maximum Power (Pmax) | 580W | 585W | 590W | 595W |
| Maximum Power Voltage (Vmp) | 42.37V | 42.52V | 42.67V | 42.82V |
| Maximum Power Current (Imp) | 13.69A | 13.76A | 13.83A | 13.90A |
| Open-circuit Voltage (Voc) | 51.02V | 51.16V | 51.30V | 51.44V |
| Short-circuit Current (Isc) | 14.47A | 14.55A | 14.63A | 14.71A |
| Module Efficiency (%) | 22.45% | 22.65% | 22.84% | 23.03% |
| Electrical Data (NOCT) | ||||
|---|---|---|---|---|
| Maximum Power (Pmax) | 436W | 440W | 444W | 448W |
| Maximum Power Voltage (Vmp) | 39.69V | 39.81V | 39.93V | 40.05V |
| Maximum Power Current (Imp) | 10.99A | 11.05A | 11.11A | 11.17A |
| Open-circuit Voltage (Voc) | 48.46V | 48.60V | 48.74V | 48.88V |
| Short-circuit Current (Isc) | 11.68A | 11.75A | 11.82A | 11.89A |
| Module Efficiency (%) | 22.45% | 22.65% | 22.84% | 23.03% |
If you want to know more details, welcome to contact us at any time!

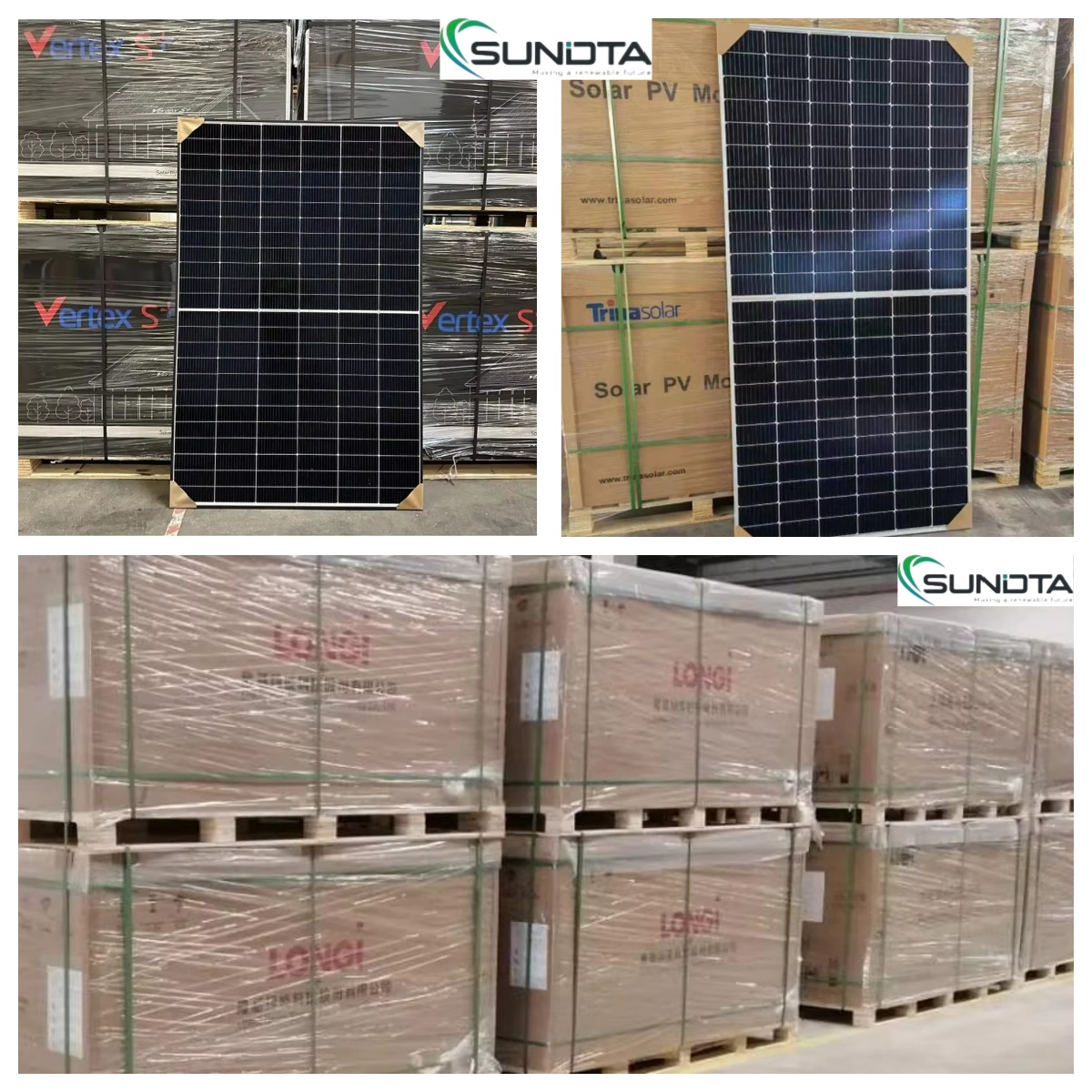

Product Packaging
Certifications

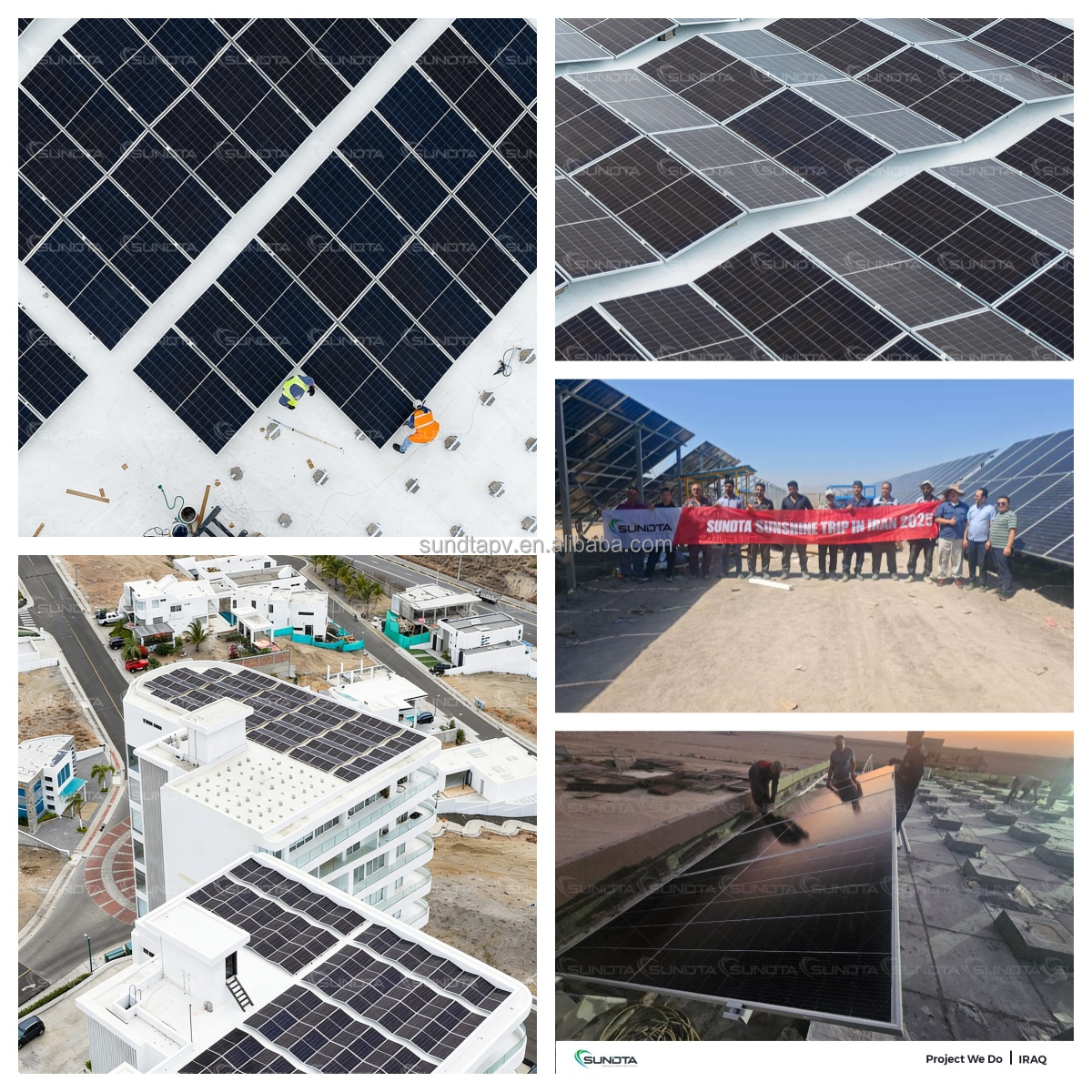

Our Projects

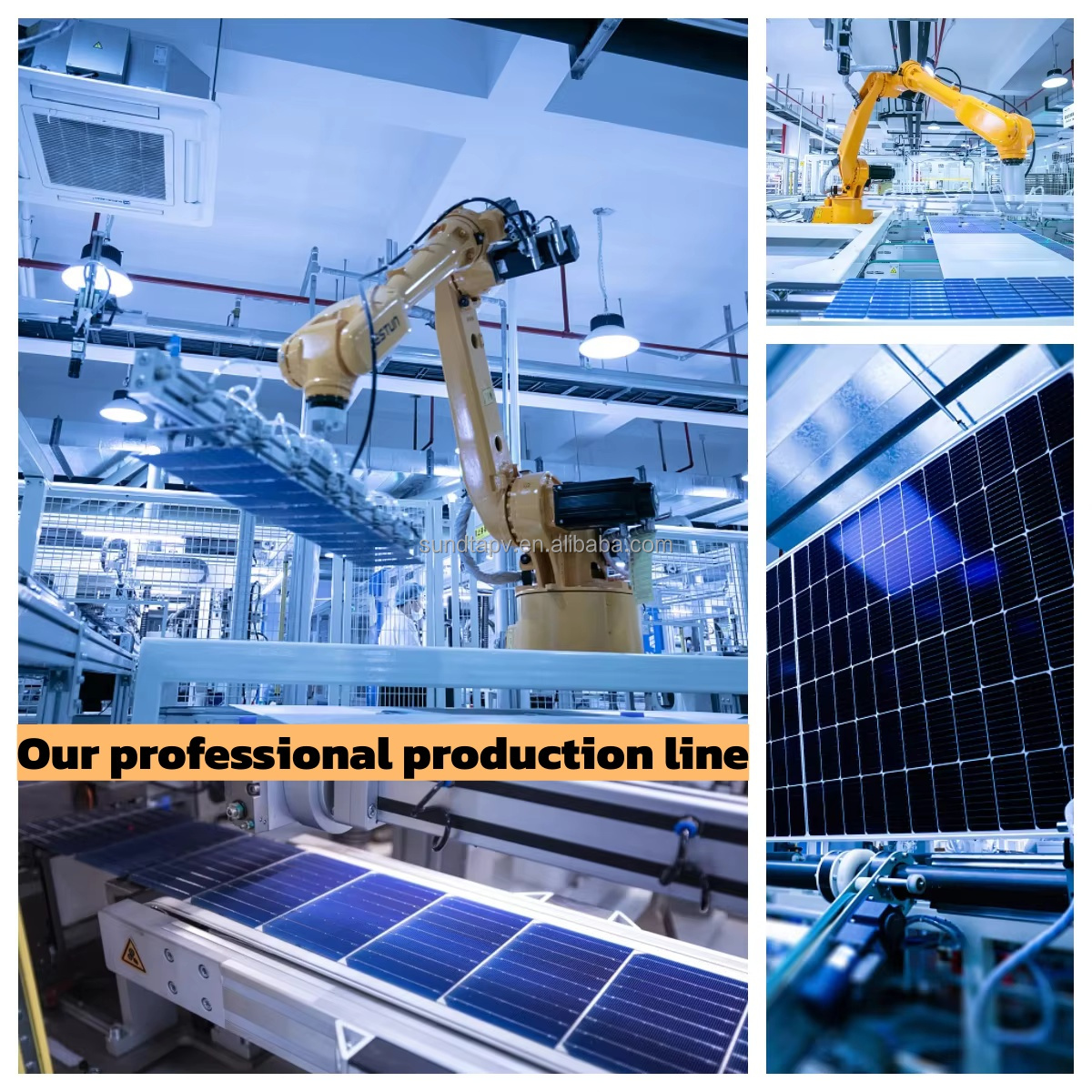

Regarding our company and our team
Frequently Asked Questions (FAQ)
What is the power output range of these solar modules?
Under Standard Test Conditions (STC), this series delivers maximum power output ranging from 580W up to 595W, with a maximum module efficiency reaching up to 23.03%.
What are the dimensions and mechanical specifications of each panel?
Each module measures 2278 x 1134 x 35 mm and weighs approximately 28 kg. It features an anodized aluminum alloy frame and 3.2mm anti-reflective low-iron tempered glass.
What is the waterproof protection rating of the junction box?
The panels come equipped with an IP68-rated junction box integrated with three diodes, ensuring reliable protection against water ingress and high ambient weather conditions.
Can output cable lengths be tailored to specific requirements?
Standard configurations include TUV 1x4.0mm² cables with (+) 400mm and (-) 200mm lengths, but custom cable lengths can be accommodated upon request.
How are the modules packaged for international shipping?
The panels are packed at 31 pieces per pallet, allowing for optimal transport capacity of up to 620 pieces inside a standard 40'HQ shipping container.
How can I obtain a customized quotation or technical datasheet?
You can reach out through our contact form or contact information provided on this page, and our technical sales team will assist you promptly.
