Emergency Backup Whole House Hybrid Solar Power System 15kW 20kW 25kW 30kW 50kW Solar Generator with Smart MPPT Battery
Product Description
What does the solar kit include?
The solar system kit includes all necessary accompanying elements for installing the solar system: Mounting Structure – supporting framework for solar panel installation, including mounting profiles, accessories, consumables, and fasteners; AC/DC Wiring – cabling for both AC and DC connections, including solar cables, DC connectors, and power cables; Control Panel – containing protective and switching equipment for managing the system.
Product Parameters
| Model | SUN-5KW-HY | SUN-8KW-HY | SUN-10KW-HY |
|---|---|---|---|
| Half Cut Mono 600W Solar Panel | 8-10 Pieces | 14-16 Pieces | 18-20 Pieces |
| Hybrid Inverter | 5KW Hybrid Inverter | 8KW Hybrid Inverter | 10KW Hybrid Inverter |
| Lithium Battery | 5Kwh/ 10KWH | 10Kwh/ 15KWH | 10Kwh/ 15KWH |
| DC Cable 4mm2 | 100 meter | 200 meter | 200 meter |
| MC4 Connector | 10 pairs | 10 pairs | 20 pairs |
| DC combiner box | Custom | Custom | Custom |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
| Model | SUN-12KW-HY | SUN-15KW-HY | SUN-20KW-HY |
|---|---|---|---|
| Half Cut Mono 600W Solar Panel | 20-25 Pieces | 30-35 Pieces | 35-40 Pieces |
| Hybrid Inverter | 12KW Hybrid Inverter | 15KW Hybrid Inverter | 20KW Hybrid Inverter |
| Lithium Battery | 10Kwh/ 15KWH | 15Kwh/ 20KWH | 20Kwh/ 30KWH |
| DC Cable 4mm2 | 200 meter | 300 meter | 400 meter |
| MC4 Connector | 20 pairs | 20 pairs | 30 pairs |
| DC combiner box | Custom | Custom | Custom |
| Mounting System | Customized Product Based On Installation Roof/Ground | ||
System Components
TOPCON N Type Bifacial 600W
- PERC/Bifacial PV Moduels
- Mono/Poly/black etc all types Panels
- Highest quality with full certificates
- PID Resistant, High salt and ammonia resistance
- 25 years warranty
Hybrid Solar Inverter
- All in one hybrid inverter
- Built-in MPPT solar charge controller
- Parallel operetion with up to multiple units
- Selectable input voltage range for home appliance

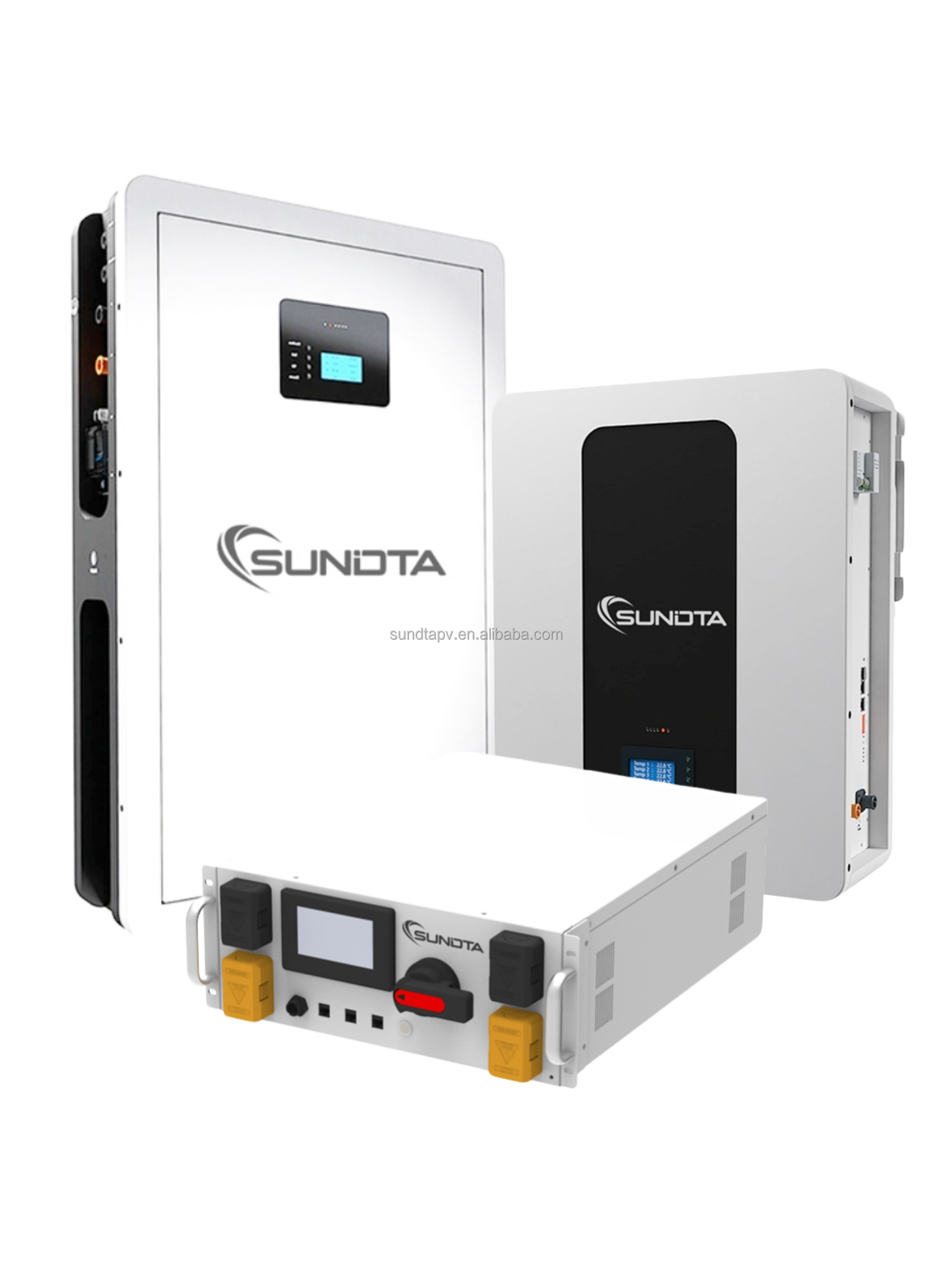

LifePO4 Battery
- Lifepo4 battery cells
- Flexible capacity options, 5kwh~20kwh
- EU, America market standard
- Built-in BMS, connect in parallel
- More than 6000 times cycle
PV Mounting System
- Ground Solar Mounting System
- Residential Roof(Pitched Roof)
- Car Parking Solar Mounting System
- Vertical wall solar mounting system
- Commercial Roof(Flat roof&workshop roof)
PV COMBINER BOX
- Customized PV combiner box for solar panels connection
- Anti-Reverse diode/DC circuit breaker /DC fuse/Surge protection device Included
- Lighting Protection
- IP65 Waterproof
- Applicable for outdoor PV systems
DC Cable & MC4 Connector
- AC Cable
- AC Breaker
- PV Connector
- AC/DC Combine box
- PV Cable 4mm2 6mm2
Smart Meter
- Local LCD display, RS485 communication
- Adopting the standard DIN35mm din rail mounting
- Small volume, easy installation and easy communication
- Positive and reverse active power, four quadrant reactive power metering
PV Tools
- Semi-Automatic PET Bottle Blowing Machine
- Bottle Making Machine Bottle Moulding Machine
- PET Bottle Making Machine is suitable for producing PET plastic containers and bottles in all shapes.
Our Projects
our valued customer in Ukraine has successfully installed energy storages ystems, boasting capacities of 30kw/80kwh
the production and packaging of Iran's 2.5MW grid-connected solar system has been successfully completed
Estonian customers for completing the installation of a 30kw/65kwh
Cyprus customer completed the installation of a 30kw/40kwh
Cyprus customer completed the installation of a 30kw/40kwh
SUNDTA 5.87MW rooftop photovoltaic project has been successfully connected to the grid! The project uses a total of 10,342 SUNDTA 580W solar panles
SUNDTA's 1334kwp rooftop photovoltaic project was successfully connected to the grid to generate electricity on April 30, 2024. The project uses TOPCon N-type 580w solar panels, with a total of 23,000 panels in the overall project.

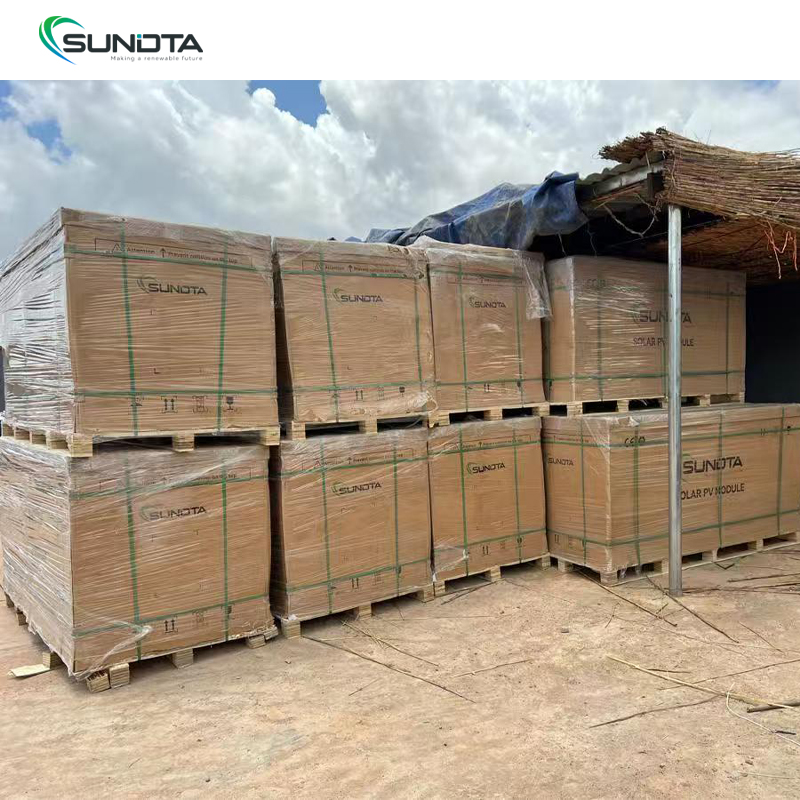

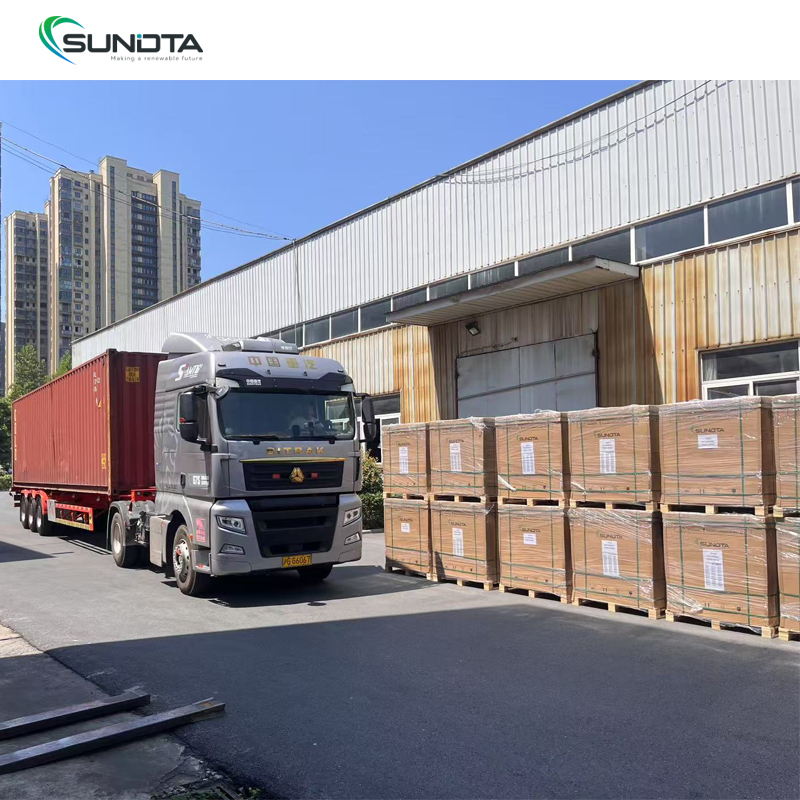

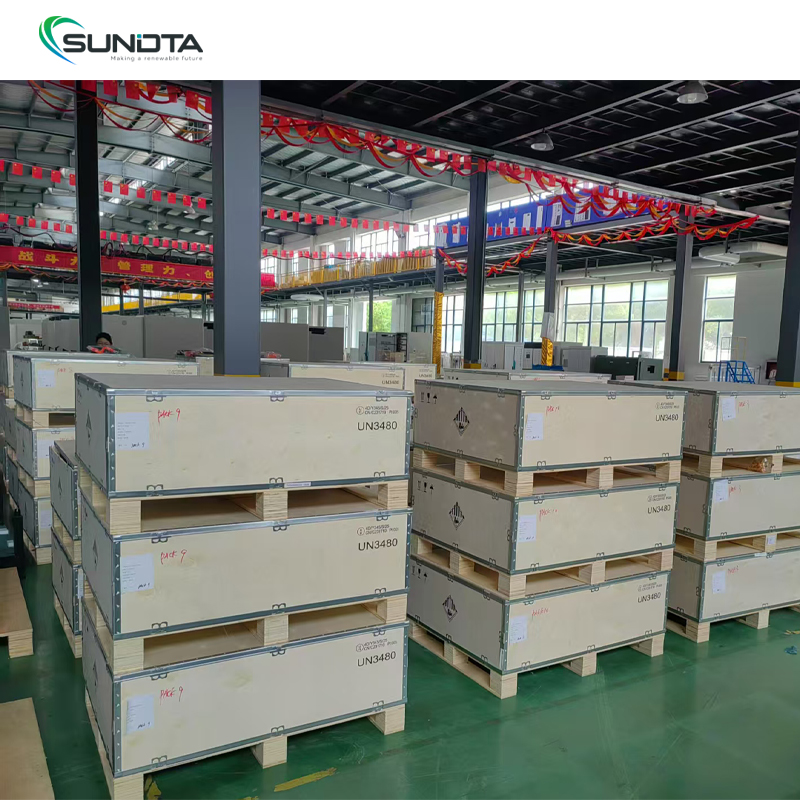

Product Packaging
SUNDTA 550W solar panels have successfully passed all rigorous factory testing. Shipping has been confirmed, and these powerful panels are now on their way to Jamaica
SUNDTA 480W all black N-type solar panels have completed factory inspection and acceptance, have been packed and boxed,and 3 containers will be shipped to Switzerland.
Exhibition & Customer Photos
Customers from Ecuador came to visit the SUNDTA factory
SUNDTA participated in the SOLAR & STORAGE LIVE 2024 photovoltaic energy exhibition in the Philippines from 20 to 21 May , 2024.
Regarding our company and our team
Frequently Asked Questions (FAQ)
QWhat primary equipment is included in a complete solar system kit?
The system includes high-efficiency solar panels, an all-in-one hybrid solar inverter, durable LiFePO4 battery storage, specialized mounting structures, DC combiner boxes, MC4 connectors, solar cables, and smart metering solutions.
QCan the hybrid inverter system be expanded in parallel?
Yes, our hybrid inverters come with integrated MPPT charge controllers and support parallel operation with multiple units to accommodate higher energy demands and home appliance setups.
QWhat is the expected lifespan and warranty of the solar panels and batteries?
The TOPCon N-type solar modules provide a 25-year performance warranty with high resistance to PID, salt, and ammonia. The LiFePO4 lithium batteries deliver over 6,000 cycles and include an integrated Battery Management System (BMS).
QCan the mounting systems be customized for different roof and ground types?
Yes, mounting systems are customized based on the site conditions, including residential pitched roofs, commercial flat/workshop roofs, ground mounts, solar carports, and vertical wall structures.
QAre all system components certified for international standards?
All components are fully certified to meet strict European and American safety and performance standards, ensuring compliance and smooth delivery for international projects.
