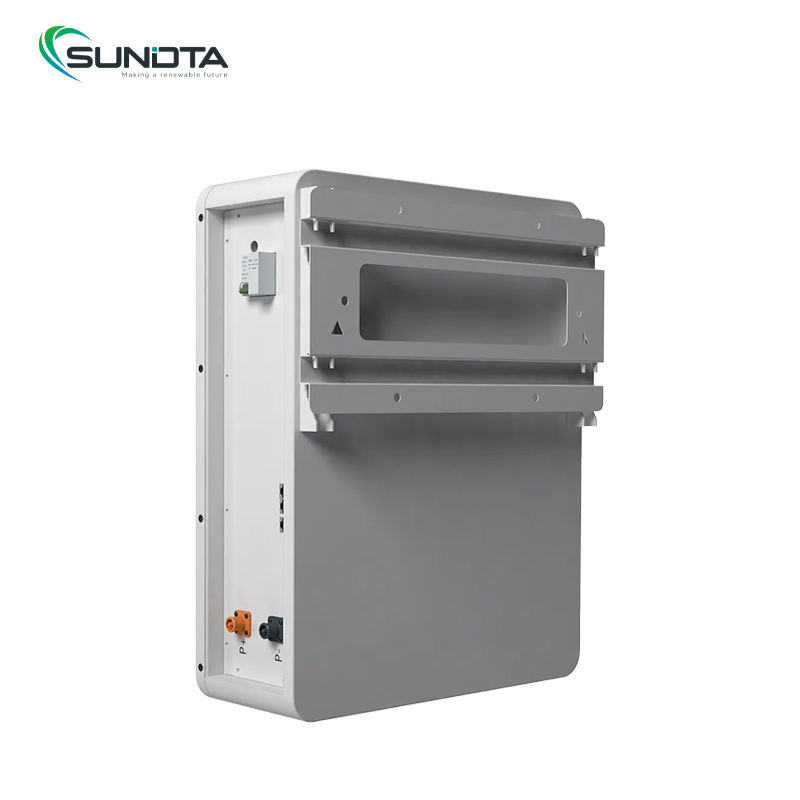

Sundta EU Warehouse 48V/51.2V LiFePO4 Lithium Ion Battery 10kWh Solar Home Energy Storage System Wall-Mounted 200Ah Capacity
Product Description

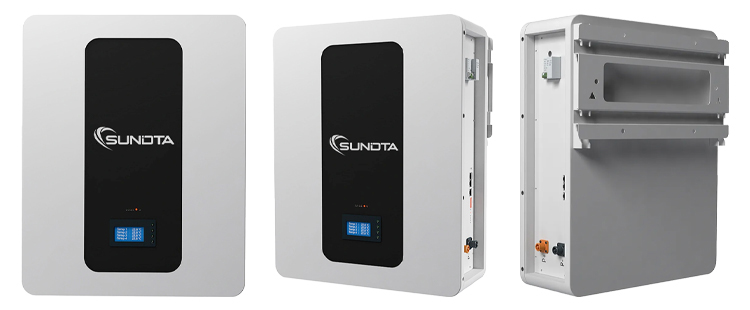

Details Images
Product Parameters
Battery Chem & Model
POLO-W1 / LFP
Module Capacity
5.32 kWh / 51.2V
Cycle Life
≥ 6,000 Cycles
Warranty & Protection
10 Years / IP65
| Model | POLO-W1 |
| Battery Type | LFP |
| Cell Capacity | 104AH |
| Battery Module Capacity | 5.32kwh |
| Expandable Capacity | 5.32kwh |
| Nominal Voltage | 51.2V |
| Voltage Range | 42v-58.4v |
| Rated Charge/Discharge Current | 50A/100A @25±2°C |
| Maximum Charge/Discharge Current | 100A @25±2°C |
| Working Temperature | -20~55°C |
| Weight (kg) | 52kg |
| Dimension (mm) | 578.5*458.5*172.4mm |
| Communication Mode | CAN & RS485 |
| Battery Protection | Over-current / Over-voltage / Short circuit / Under-voltage / Over temperature / Low temperature |
| Warranty | 10 Years |
| Altitude | <2000m |
| Cooling | Natural |
| Cycle Life | ≥6000 |
| IP Rated | IP65 |
| Safety Standards | CE, UN38.3, MSDS, IEC62619 |
If you want to know more details, welcome to contact us at any time!
Product Packaging
Certifications
Regarding Our Company and Our Team
Frequently Asked Questions (FAQ)
What battery chemistry and capacity does the POLO-W1 utilize?
The POLO-W1 is built with reliable Lithium Iron Phosphate (LFP) chemistry featuring a 104Ah cell capacity, a 51.2V nominal voltage, and a module capacity of 5.32kWh with expandability options.
What is the lifespan and warranty period of this battery module?
The battery delivers an extensive cycle life of ≥6,000 cycles and is backed by a comprehensive 10-year warranty for peace of mind.
Can the POLO-W1 battery be installed in outdoor environments?
Yes, the battery module comes with an IP65 ingress protection rating and operates in a temperature range from -20°C to 55°C with natural cooling, making it suitable for versatile installation locations.
What communication protocols are supported for inverter integration?
The POLO-W1 supports both CAN and RS485 communication protocols, allowing smooth integration with mainstream solar inverters and energy management systems.
What safety protections are built into the battery system?
The integrated protection system safeguards against over-current, over-voltage, short circuit, under-voltage, over-temperature, and low-temperature conditions.
Which international safety standards and certifications are met?
The POLO-W1 is tested and certified under international standards including CE, UN38.3, MSDS, and IEC62619 for secure transit and safe operation.
