Featured Stackable Energy Storage & Compatible Solar Systems
Factory-direct wholesale pricing from Hefei RJV clean-tech manufacturing base. Engineered with closed-loop communication for Deye, Solis, and tier-1 hybrid inverter platforms.
Tier 1 Solar Panel Sodenergy 700W–730W N-Type PV Module
- Efficiency: Up to 23.2%
- Zero Light-Induced Degradation
- IEC 61215 / IEC 61730 Audited
Stackable 51.2V 14.336kWh Home Energy Storage Battery
- 280Ah Grade-A Prismatic Cells
- 6,000+ Deep Cycles @ 80% DoD
- CAN / RS485 Dual Protocol BMS
Emergency Whole House Hybrid Solar Power System 15kW–50kW
- Seamless UPS Transfer (< 10ms)
- Smart Dual MPPT Charge Inverter
- Scalable Modular LiFePO4 Banks

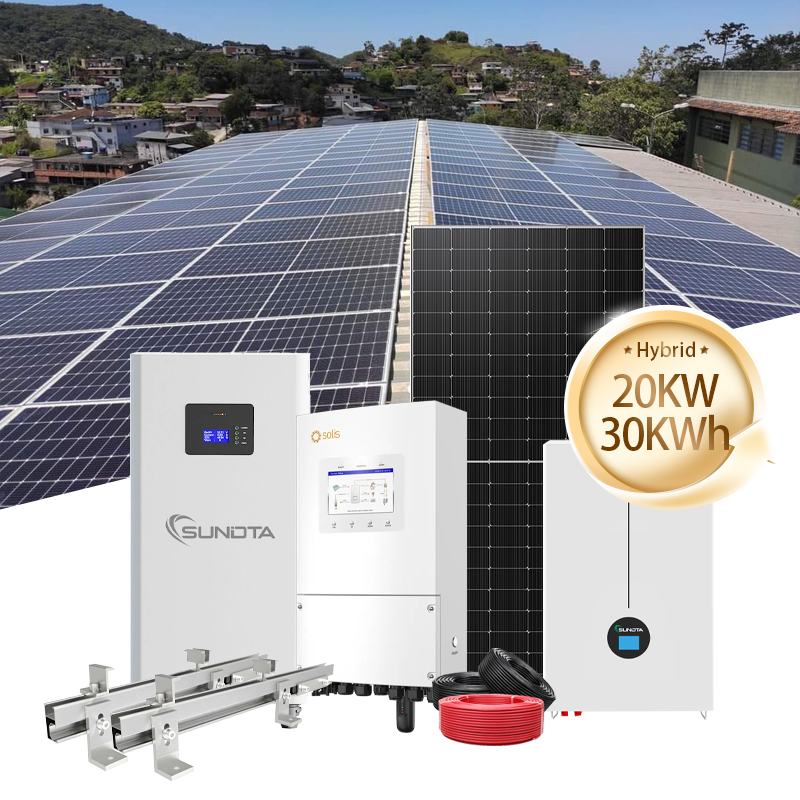

Complete Hybrid Solar Energy Storage System 20kW–50kW
- Three-Phase Balanced Output
- Pre-wired Plug & Play Setup
- Full TÜV & CE Documentation
Energy Bank Powerwall 51.2V 314Ah / 200Ah 15kWh ESS
- 16kWh Footprint-Saving Design
- Active Cell Balancer (2A) Built-in
- 15 Units Paralleling Capable
C&I Outdoor All-in-One ESS Cabinet 100kW–500kW
- HVAC Liquid/Air Industrial Cooling
- Integrated Aerosol Fire Safety
- Peak Shaving & Demand Management
Complete 30kW Hybrid Solar Energy System Kit (CE/VDE)
- VDE-AR-N 4105 & CE LVD/EMC Cert
- High-Voltage Stack Architecture
- Pre-engineered Mounting & Cabling

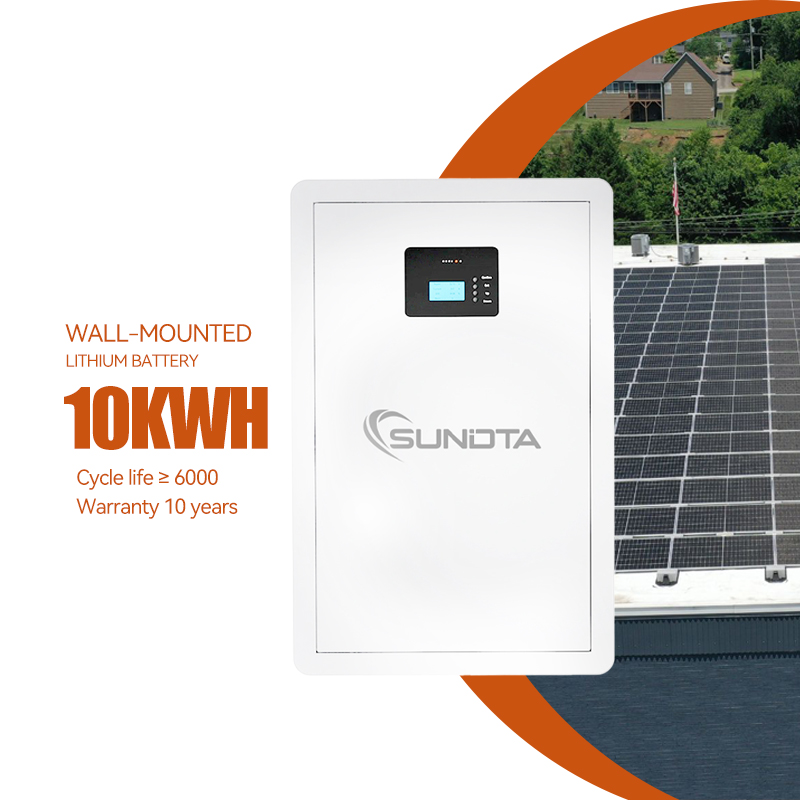

Sundta IP65 10kWh 51.2V 200Ah Wall-Mounted Solar Storage
- NEMA 4X / IP65 Weatherproof
- Integrated Touchscreen Telemetry
- Multi-Inverter Protocol Auto-Select
Annual Module & Pack Capacity
Global Projects Commissioned
Proprietary Patents & Certifications
Rated Cell Endurance @ 80% DoD
Why Stackable Modular LiFePO4 is Superseding Monolithic Powerwalls
An analytical engineering evaluation for solar procurement managers, EPC system designers, and overseas renewable hardware importers.
Low-Voltage (LV) vs. High-Voltage (HV) Stackable Architecture
Traditional 48V/51.2V low-voltage paralleling encounters amperage bottlenecks beyond 20kWh, requiring bulky 50mm² copper cabling and multi-branch combiner boxes that elevate heat dissipation risks (P = I²R). Stackable high-voltage systems (150V to 600V+ DC) connect modules in direct series via busbar connectors, reducing conductor current by over 75%, eliminating inter-battery wiring harnesses, and driving overall round-trip inversion efficiency past 96.8%.
Intrinsic LiFePO4 Thermal Stability & Grade-A Cell Screening
Unlike ternary NMC chemistry prone to explosive thermal runaway at 210°C, Lithium Iron Phosphate (LiFePO4) preserves crystalline structural integrity up to 480°C. RJV integrates factory-fresh 3.2V 280Ah and 314Ah prismatic aluminum-cased cells sourced exclusively from top-tier tier-1 foundries, subject to automated OCV (Open Circuit Voltage), IR (Internal Resistance), and 3C capacity differential binning to ensure capacity deviation below 0.5% across stacks.
Multi-Inverter BMS Firmware Interoperability
The leading cause of field commissioning failures is asynchronous handshaking between the battery BMS and the hybrid inverter. Our stackable controller firmware embeds dual CAN/RS485 physical transceivers carrying real-time protocol emulators for Deye, Solis, Victron, GoodWe, Growatt, SMA, and Luxpower. Installers toggle pre-programmed protocols via DIP switches or LCD interfaces without external flashing dongles.
| Evaluation Parameter | Wall-Mounted Monolithic (51.2V 100Ah) | RJV Stackable High-Voltage (Series) | C&I Containerized Cabinet (BESS) |
|---|---|---|---|
| Nominal Operating Voltage | 51.2 VDC (Fixed) | 153.6 VDC – 614.4 VDC (Configurable) | 768 VDC – 1000 VDC (High-Tension) |
| Expansion Footprint | High wall footprint, external cables | Vertical Zero-Cable Interlock | Centralized pad-mount enclosure |
| Cable Loss (I²R Dissipation) | High (Amperage 100A–200A DC) | Ultra-Low (Amperage < 35A DC) | Optimized internal busbar routing |
| BMS Protection Layers | Single PCB protection board | Master-Slave Architecture + Shunt Trip | 3-Tier EMS/BMS with Industrial PLC |
| On-Site Installation Labor | 2.5 Man-Hours per 10kWh | 0.6 Man-Hours per 10kWh | Forklift drop-in installation |
Procurement Trends & Technological Trajectories for 2025–2030
Strategic intelligence for wholesale procurement executives seeking to future-proof their supply chain against regulatory shifts and cell-level chemistry transitions.
Universal Transition to 314Ah Prismatic Densities
The standard 280Ah form-factor is rapidly migrating to 314Ah standard geometry without expanding casing dimensions. This represents a 12% boost in volumetric volumetric density, diminishing ocean container freight per megawatt-hour and compressing dollar-per-watt balance of system (BOS) costs for regional distributors.
Mandatory Unit-Level Fire Suppression Integration
With the global enforcement of UL 9540A and NFPA 855 test standards, tier-1 stackable batteries are transitioning from passive safety to built-in thermal sensor micro-capsules and aerosol-release cartridges nestled directly inside each battery tier, arresting thermal events at the single-cell phase before propagation.
VPP & Dynamic Time-of-Use (ToU) Grid Edge Protocols
Stackable systems must now interface with cloud-based Virtual Power Plant (VPP) aggregators. RJV systems incorporate IoT gateway compatibility over IEEE 2030.5 and OpenADR protocols, empowering distributors to sell systems pre-certified for municipal frequency regulation and real-time peak-shaving tariffs.
Why Partner With RJV New Energy as Your China Production Hub?
Located in Hefei, the undisputed silicon and clean-tech manufacturing capital of Anhui Province, Anhui RJV New Energy combines state-of-the-art automated cell-sorting, robotic ultrasonic wire bonding, and automated multi-temperature aging racks with complete solar BOM procurement.
- TÜV Rheinland Audited Facility: Comprehensive verification of production processes, ISO9001/14001 compliance, and supply chain accountability.
- Pre-Clearance Dangerous Goods (DG) Packaging: Fully certified UN38.3 test summaries, MSDS documentation, and custom sea-freight pallets for non-delayed port entry.
- Unified Project Sourcing: Match stackable lithium storage with our N-Type TOPCon panels, Solis/Deye inverters, and mounting hardware in one consolidated container.
Factory Quality Verification Matrix
Every production lot is assigned a traceable batch identification code linking individual cell serialization to factory flash test reports, providing EPC buyers complete warranty audit protection.
Frequently Asked Questions by Solar Importers & EPC Contractors
Clear, unambiguous technical answers regarding Minimum Order Quantities, hazardous cargo freight, cell grading, and warranty enforcement.
What are the Minimum Order Quantities (MOQ) and sample evaluation policies for B2B buyers?
How does RJV guarantee that lithium cells are Brand-New Grade-A rather than repurposed EV cells?
What maritime shipping certificates are provided for Class 9 Dangerous Goods (UN3480) customs clearance?
How do you manage hybrid inverter closed-loop protocol communication across different global brands?
What does the 10-year warranty policy cover, and what is the process for field replacements?
Can RJV provide private labeling (OEM) and customized sheet-metal exterior finishes?
Ready to Scale Your Energy Storage Inventory with China’s Leading Exporter?
Contact our Hefei technical engineering group today. Receive complete CAD schematics, inverter interoperability matrices, flash test verification reports, and wholesale container price quotes within 24 business hours.
