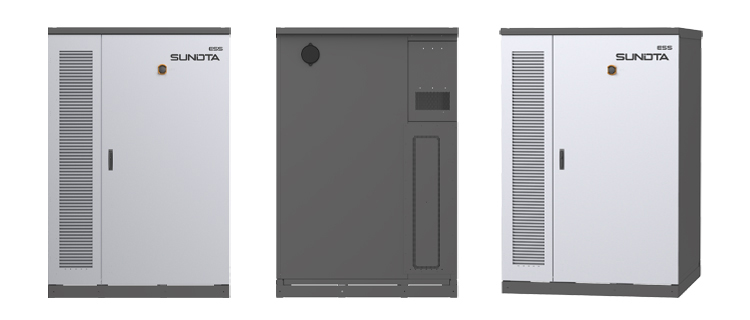

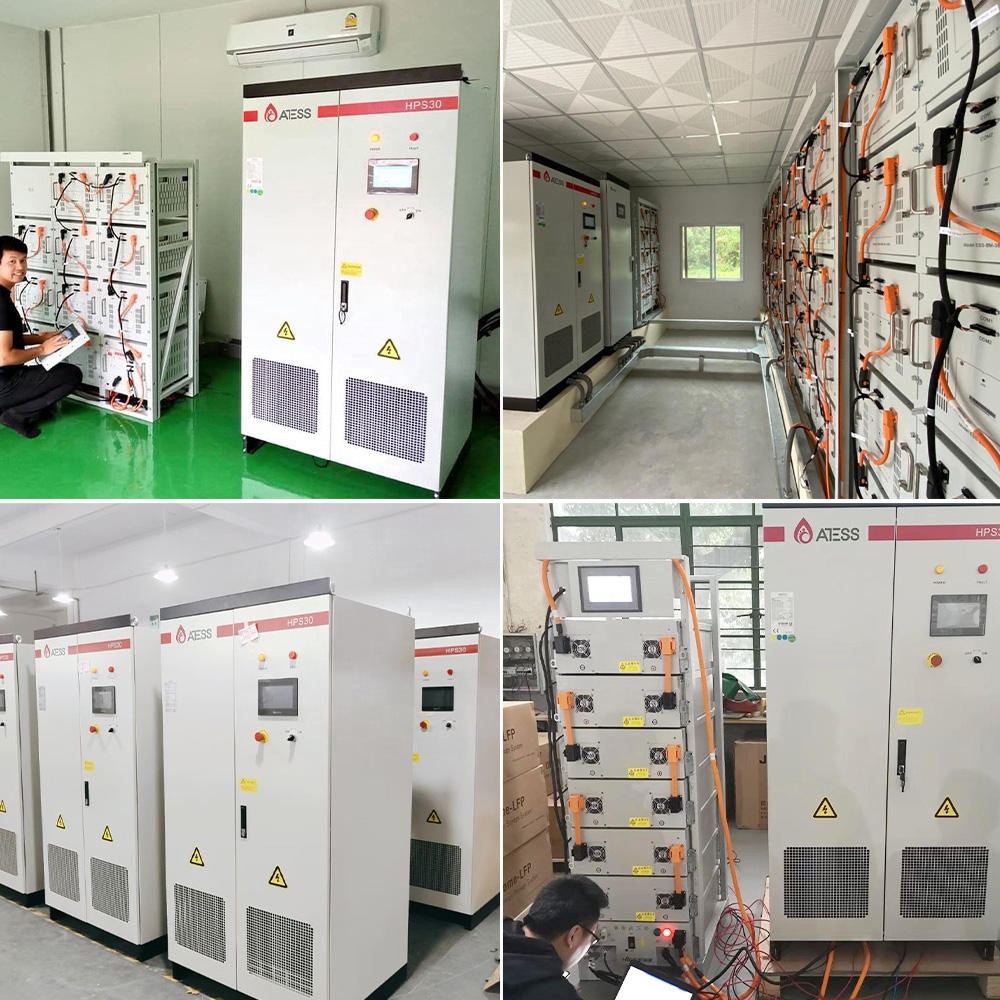

All in One Energy Storage Outdoor Cabinet 100kw 200kw 500kw Lifepo4 Solar Battery Energy Storage Systems Residential Energy
Product Description
Product Packaging
Product Parameters
| Item | Power 230 Pro |
| Inverter | |
| Rated AC power | 100kW |
| Rated AC current | 144A |
| Rated AC voltage | 3W+PE, 400Vac |
| THDI | <5% (Rated power) |
| THDU | <3% (Linear loads) |
| Battery | |
| Cell type | LiFePO4 |
| Nominal energy | 232.96kWh |
| Nominal capacity | 280Ah |
| Rated voltage | 832Vdc |
| Operating voltage range | 650Vdc~959Vdc |
| Maximum charge-discharge rate | 0.5P@25℃ |
| Cycle life | >8000@25℃@0.5C |
| System | |
| Communication | RS485, CAN, Ethernet |
| Cooling method | Liquid cooling |
| Firefighting | Pack+cabinet-level detection inhibition: Suppression medium: aerosol (standard) / perfluorohexanone (optional) |
| Operation Altitude | <4000m (More than 2000m derating) |
| Protection level | IP54 |
| Dimensions (W*D*H) | 1375*1350.5*2050 mm |
| Weight | ≈2.5T |
| Safety Regulation, EMC | IEC62619 / CE / UL1973 / UL9540A / UN38.3 / RoHS / IEC 61000-6-2: 2019 / EN IEC 61000-6-4: 2019 / EN 62109-2: 2011 / EN 62109-1: 2010 / IEC 62109-2: 2011 / IEC 62109-1: 2010 |
Certifications

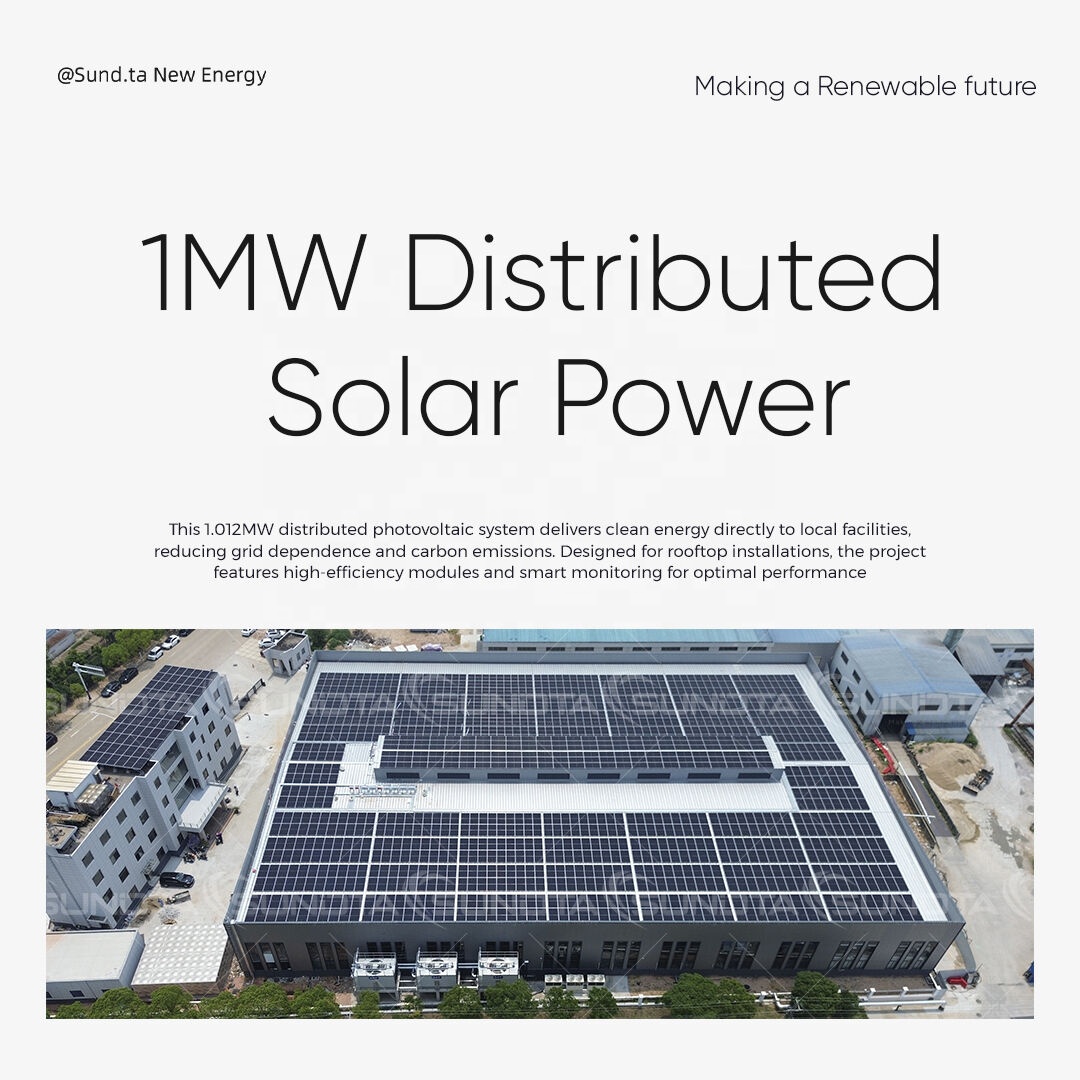

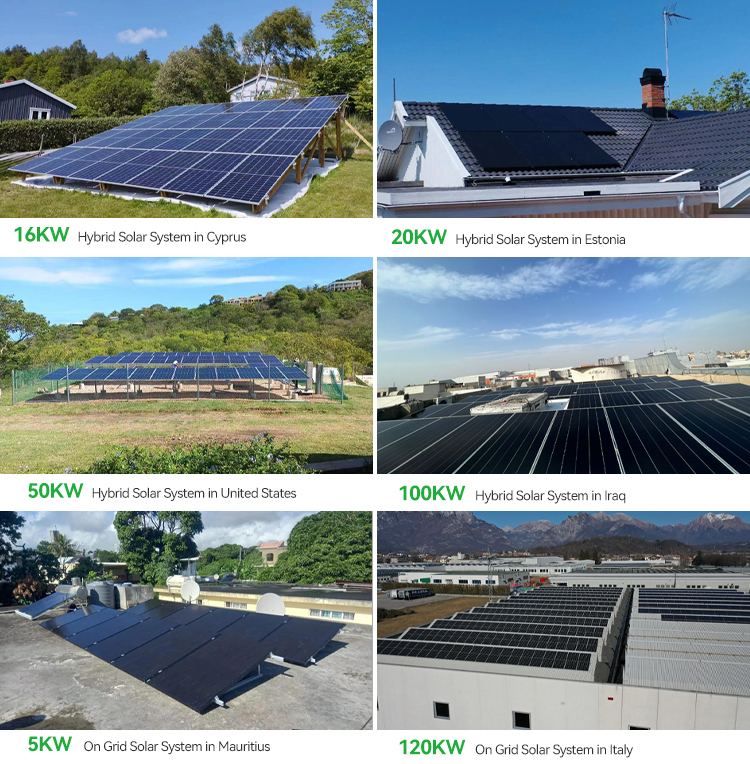

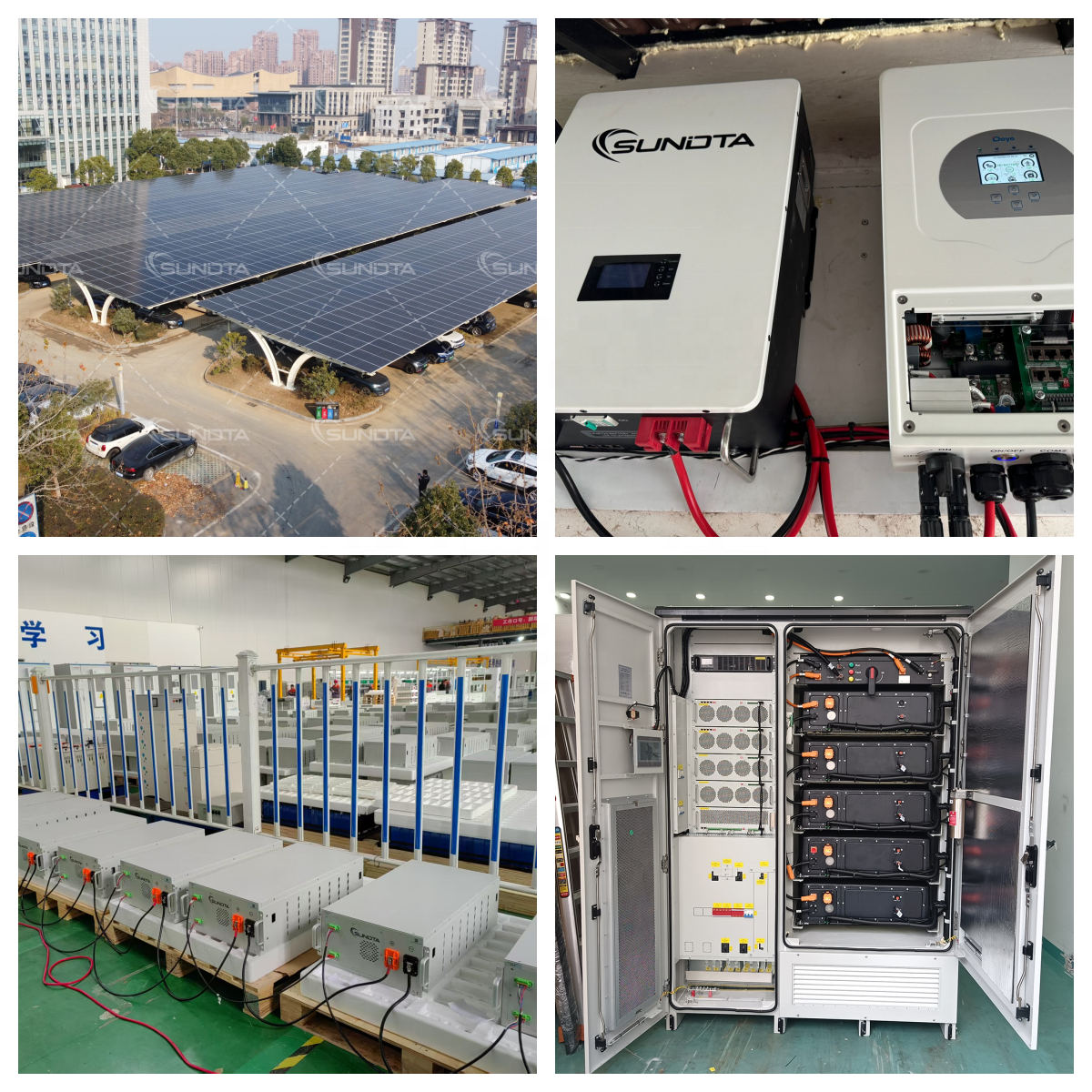

Our Projects
Regarding our company and our team
Frequently Asked Questions
Q: What is the total battery capacity and cell chemistry of Power 230 Pro?
The Power 230 Pro features a high-density LiFePO4 (LFP) cell configuration with a nominal energy of 232.96 kWh and a cell capacity of 280Ah, operating at a rated DC voltage of 832V.
Q: What cooling system is utilized to ensure thermal stability?
The unit is integrated with an advanced liquid cooling method, providing precise thermal management to ensure optimal operating temperatures, prolonged cycle life, and high discharge efficiency.
Q: What fire suppression systems are implemented for safety?
The system features dual-layer protection combining pack-level and cabinet-level detection and suppression. It utilizes standard aerosol suppression medium, with an optional perfluorohexanone configuration available.
Q: What communication protocols does the system support?
The Power 230 Pro supports standard industrial protocols including RS485, CAN, and Ethernet, enabling seamless integration into plant SCADA, energy management systems (EMS), and remote monitoring networks.
Q: Which international certifications and safety regulations are met?
The system complies with global certifications and regulations, including IEC62619, CE, UL1973, UL9540A, UN38.3, RoHS, and comprehensive IEC/EN 61000 and 62109 safety and EMC standards.
Q: Can this system be installed outdoors?
Yes, the Power 230 Pro is designed with an IP54 protection level enclosure, capable of operating at altitudes up to 4000 meters (with standard derating above 2000m), making it suitable for tough outdoor environments.
